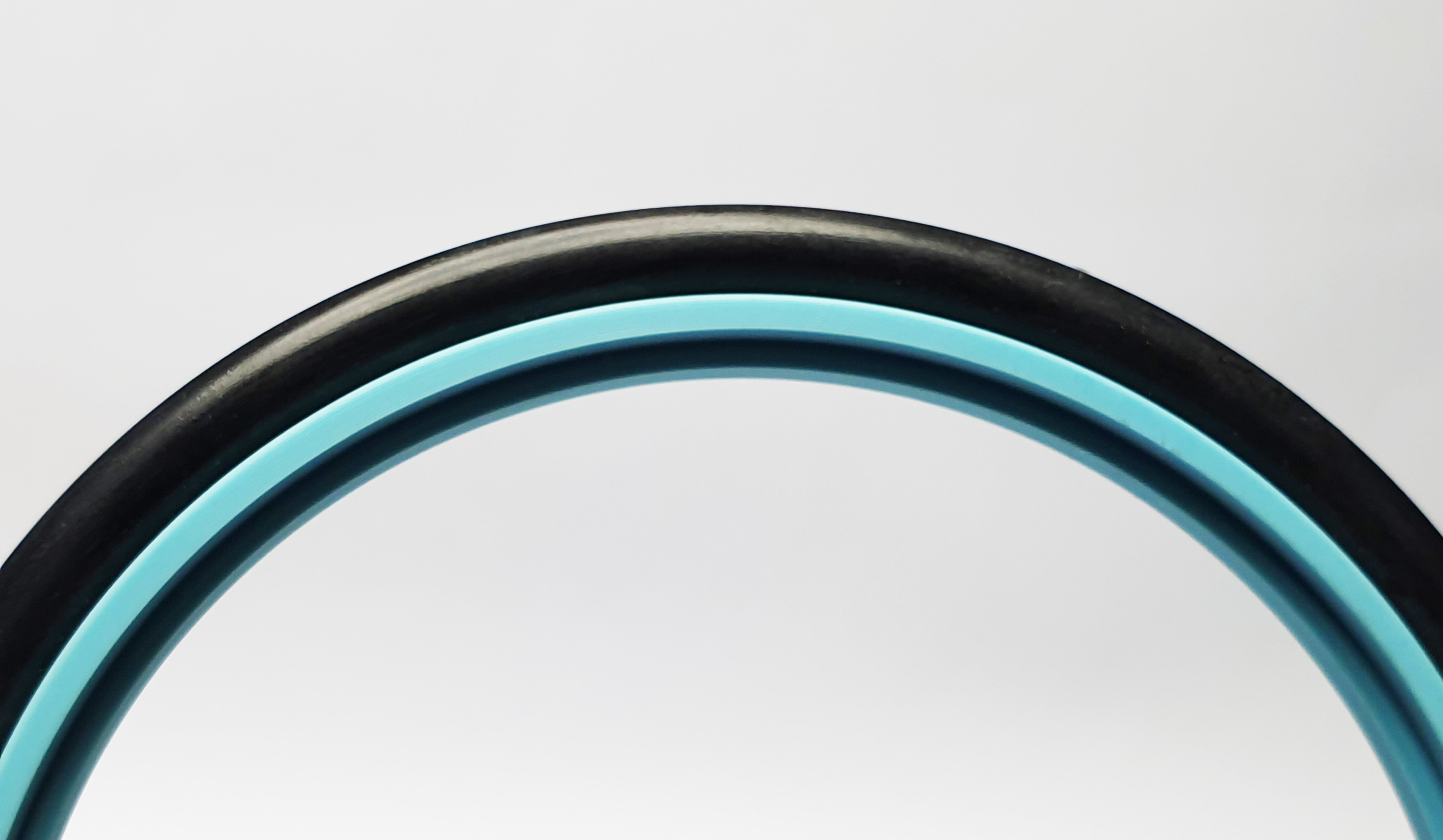

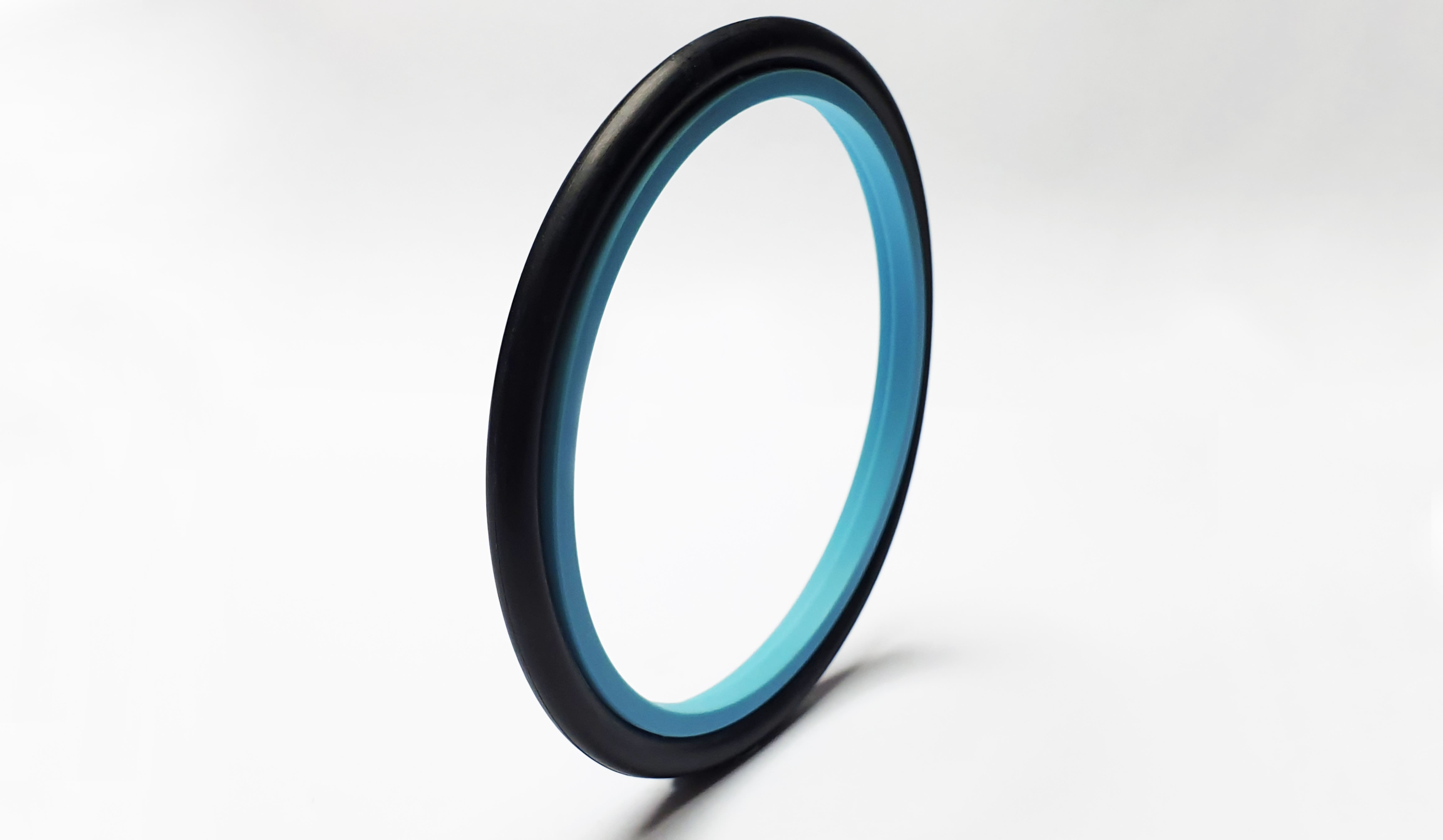

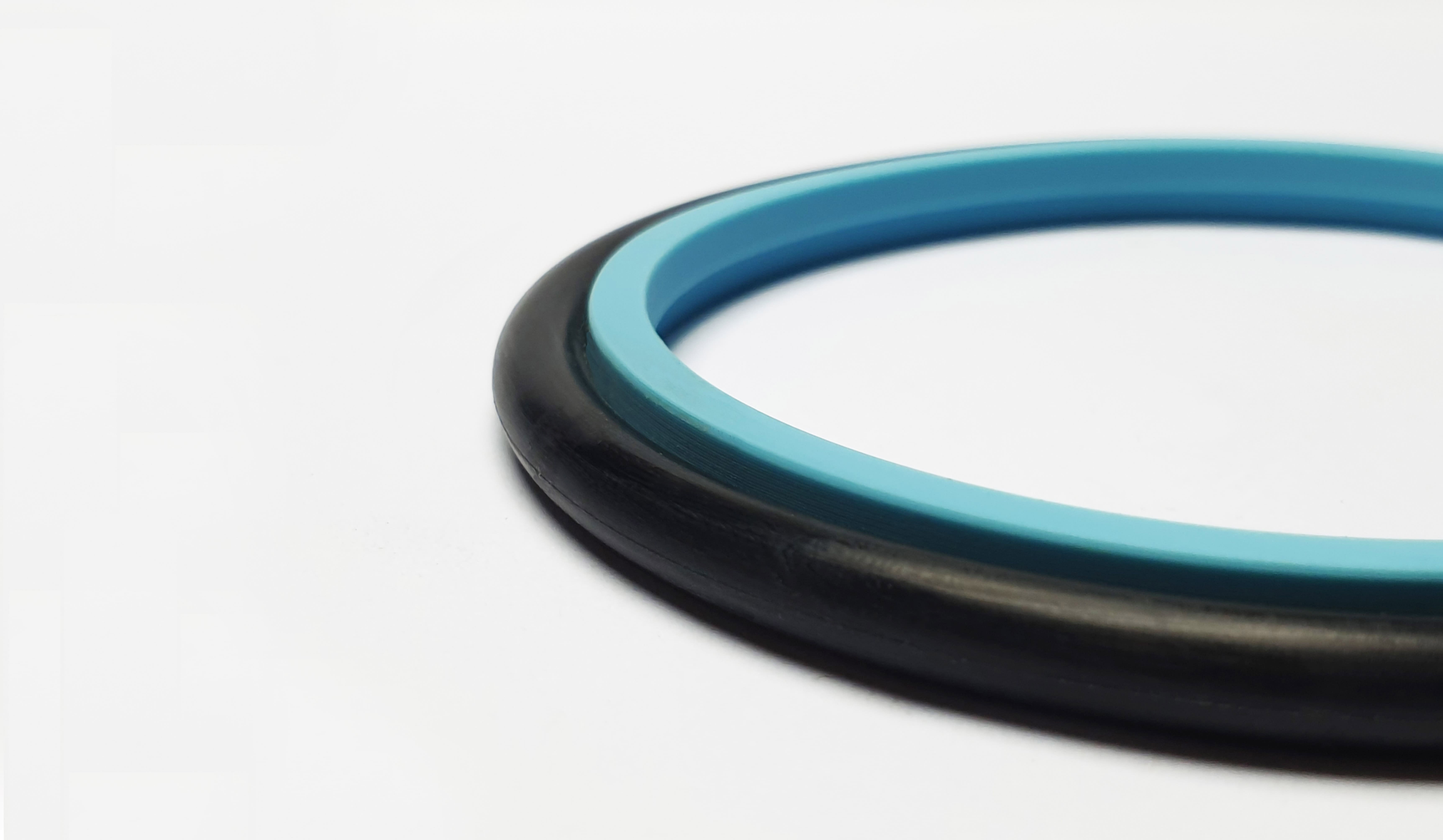

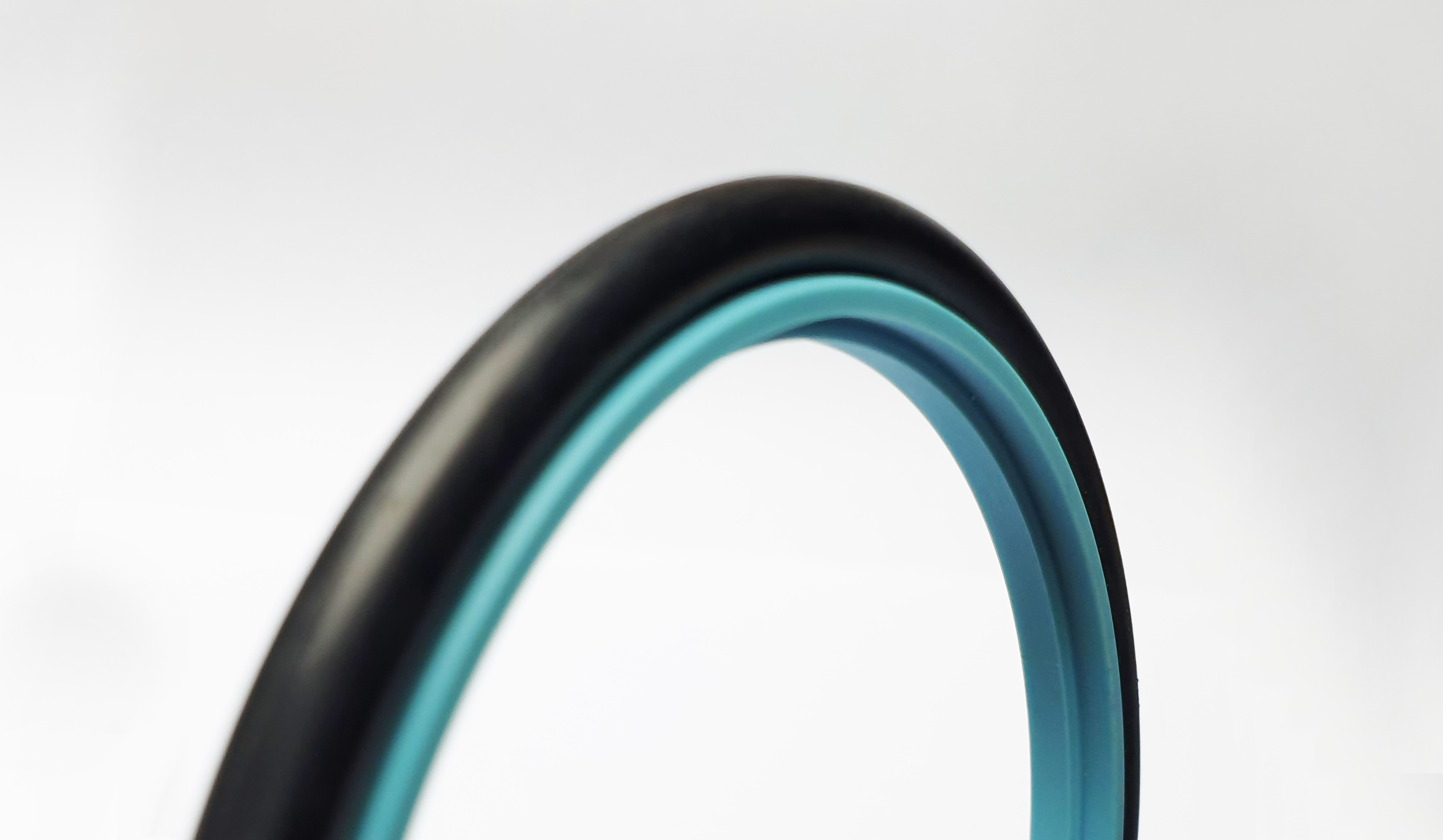

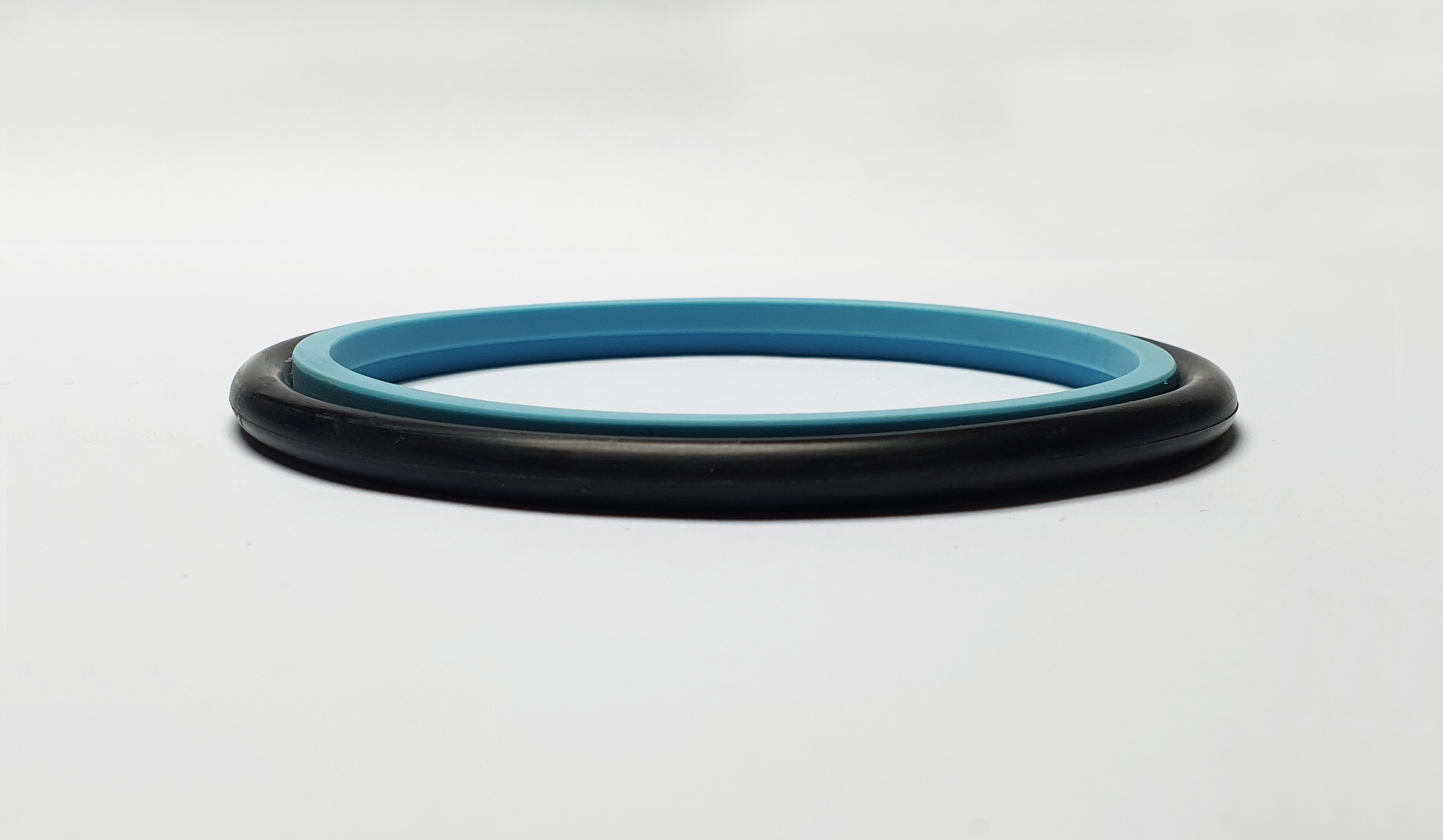

GS9S-97x112.5x6.0/6.3-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 32.37
$ 25.90 25.900000000000002 AUD

$ 32.37

Quantity
Your Price
1 - 4
$ 25.90
5 - 9
$ 24.60
10 - 24
$ 23.31
25 - 49
$ 21.04
50 +
$ 16.19

This combination does not exist.

Add to Cart

GS9S 97 X 112.5 X 6.0 / 6.3 COMPO

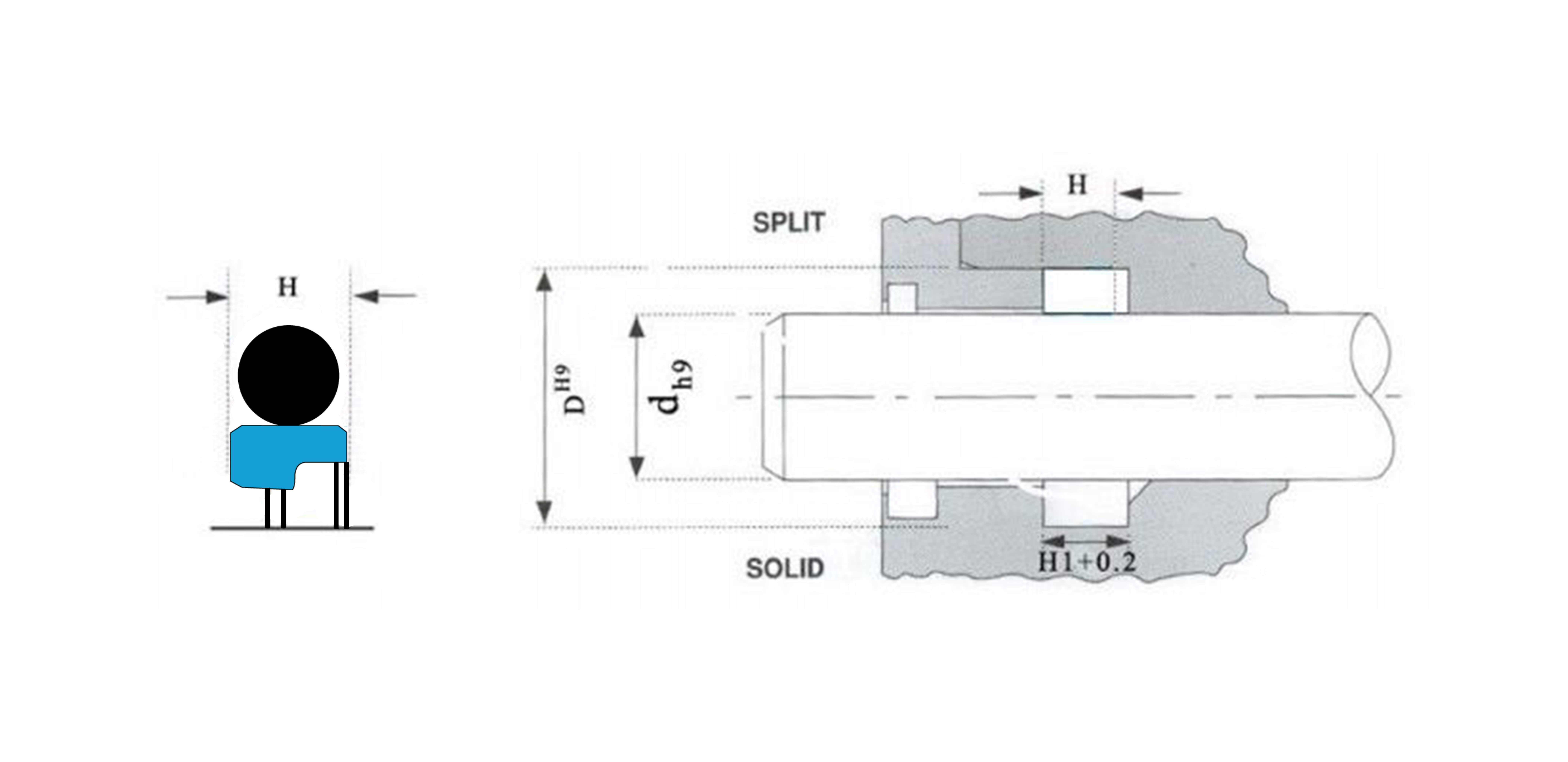

Details:

d (h9)
:
97mm
H1+0.2
:
6.3mm
D (H9)
:
112.5mm
H
:
6mm
Material
:
COMPO
GS9S-97x112.5x6.0/6.3-COMPO

Design

  • GS9S has a self relieving seal design which prevents pressure from tapping and a simple groove design for easy installation. The self relieving design prevents excessive pressure build up in the cavity between the buffer seal and rod seal. It has a special glide ring that has low frictional properties which are normally associated with this material. It is strengthened by additives to reduce creep. GS9S comes in a wide range of materials for special applications.

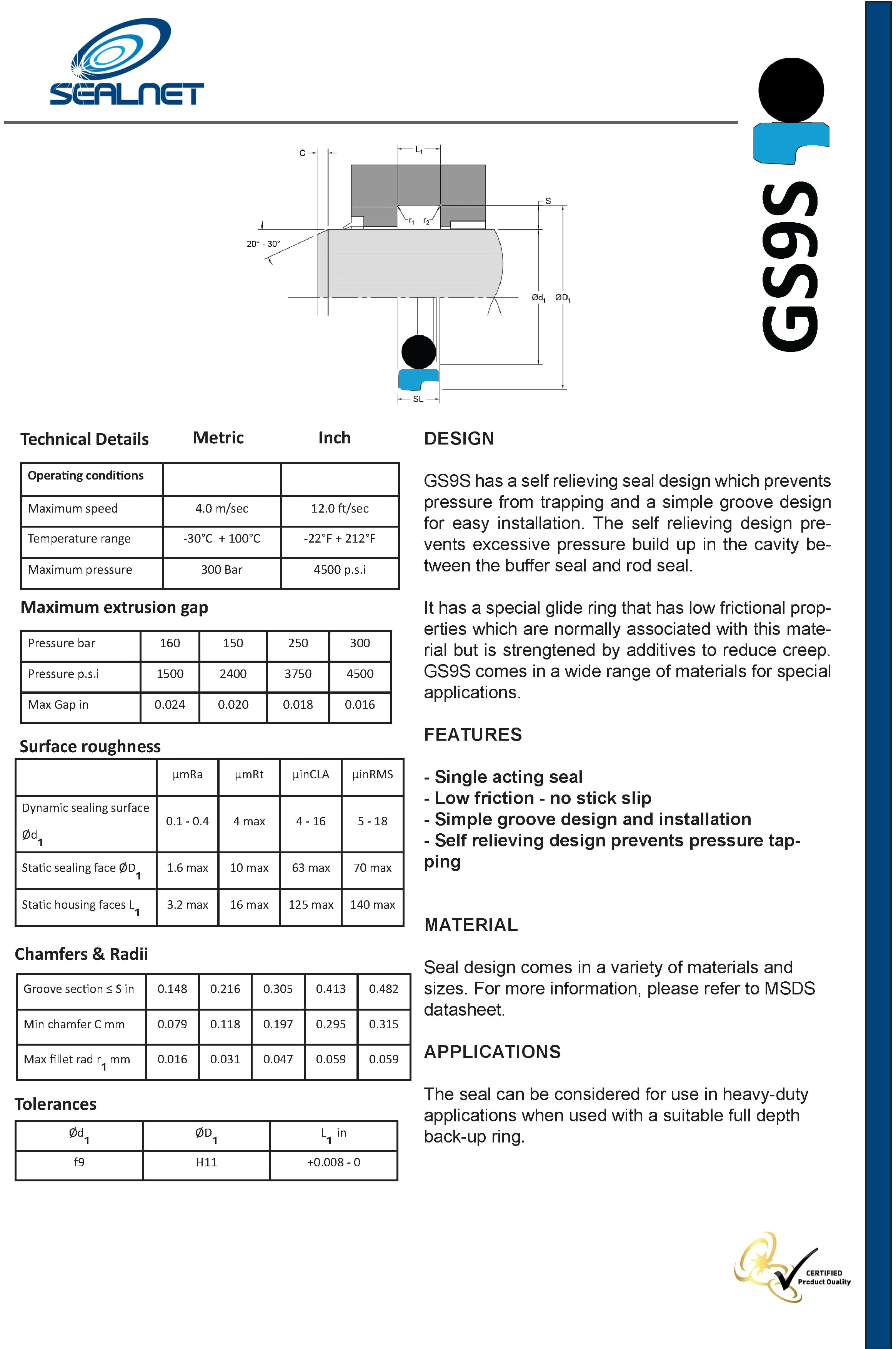

Download Datasheet

Features

  • Single acting seal
  • Low friction - no stick slip
  • Simple groove design and installation
  • Self relieving design prevents pressure tapping

Applications

  • The seal can be considered for use in heavy-duty applications when used with a suitable full depth back up ring.
