VPI-7.250x8.000x0.187/0.999-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • C/S
  • Stack Height (H/V)
  • Unit

$ 253.34
$ 202.67 202.67000000000002 AUD

$ 253.34

Quantity
Your Price
1 - 4
$ 202.67
5 - 9
$ 192.54
10 - 24
$ 182.40
25 - 49
$ 164.67
50 +
$ 126.67

This combination does not exist.

Add to Cart

VPI 7.250" X 8.000" X 0.187" / 0.999" COMPO

Details:

d (h9)
:
7.25" (184.15mm)
H1+0.2
:
0.999" (25.37mm)
C/S
:
0.375" (9.52mm)
Stack Height (H/V)
:
0.187" (4.75mm)
D (H9)
:
8" (203.2mm)
Material
:
COMPO
VPI-7.250x8.000x0.187/0.999-COMPO

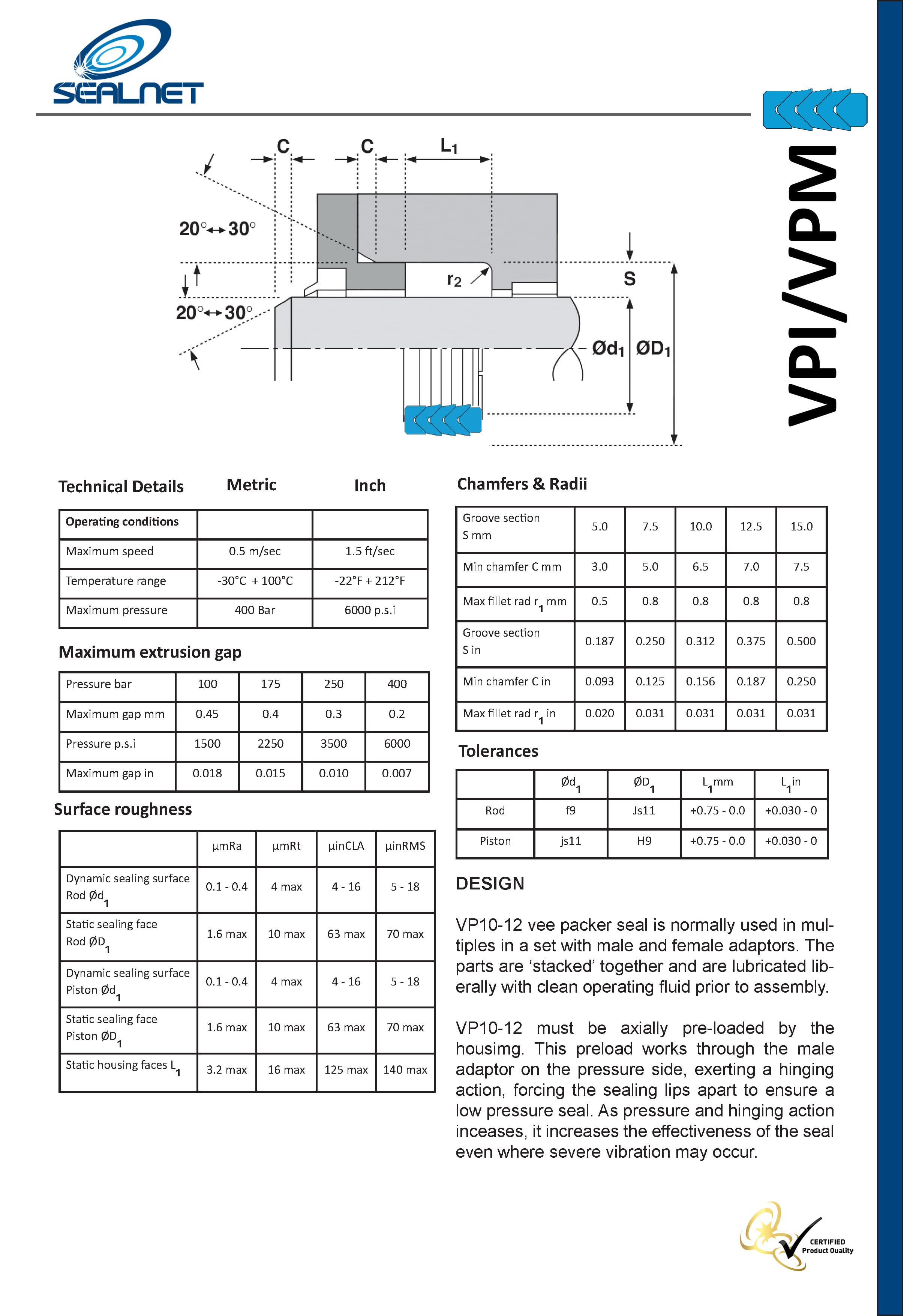

Design

  • VPI vee packer seal is normally used in multiples in a set with male and female adaptors. The parts are 'stacked' together and are lubricated liberally with clean operating fluid prior to assembly. VPI must be axially pre-loaded by the housing. This pre-load works through the male adaptor on the pressure side, exerting a hinging action, forcing the sealing lips apart to ensure a low pressure seal. As pressure and hinging action increases, it increases the effectiveness of the seal even where severe vibration may occur.


Applications

  • High pressure rod and piston sealing applications
  • Used in steel mill and hydraulic press applications


Fluids

  • Mineral based oils, water/glycol and water emulsions
