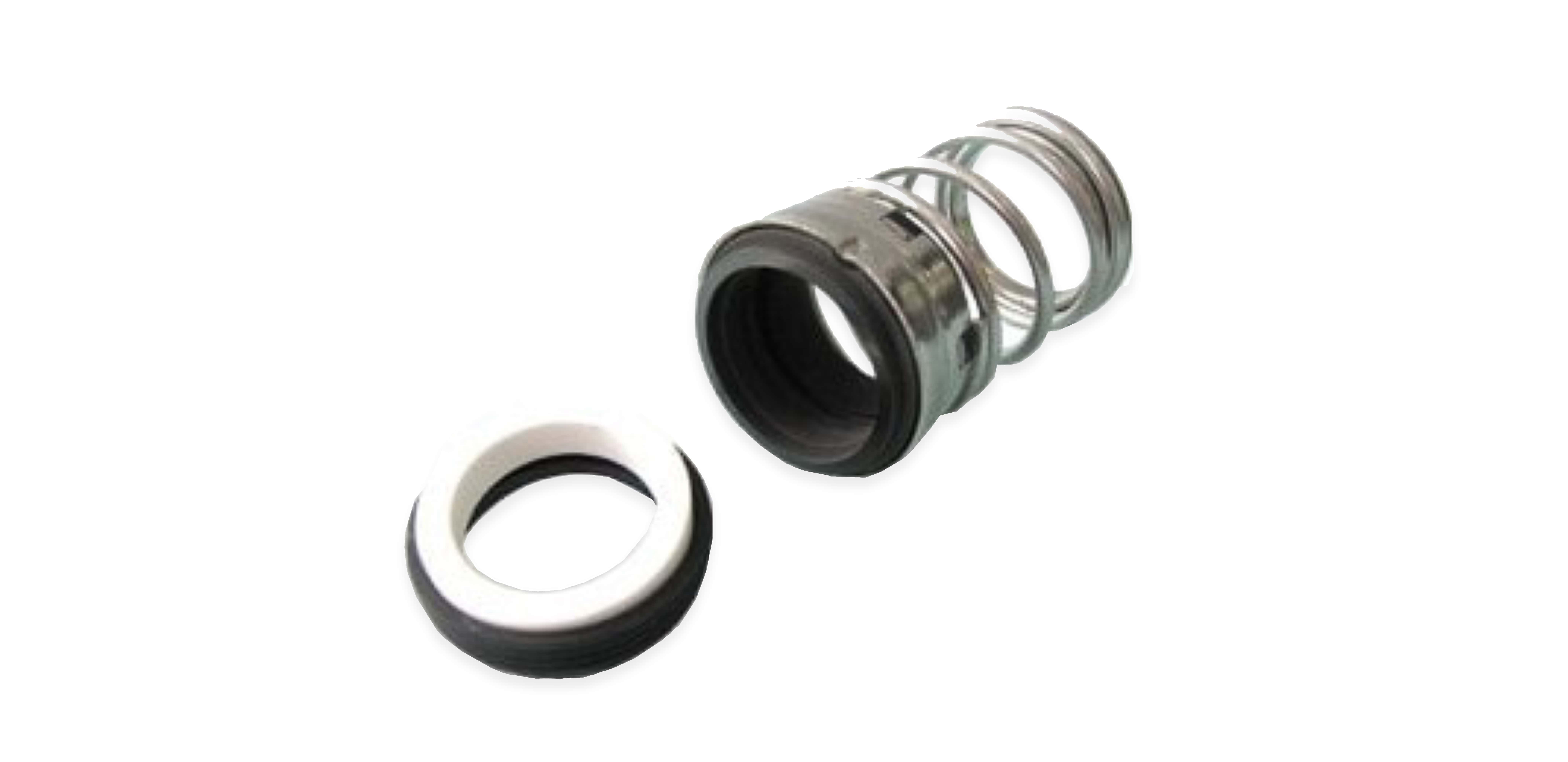

BALDI100-3.5x4.375x4.375-C
BALDI100 3.5" X 4.375" X 4.375" C

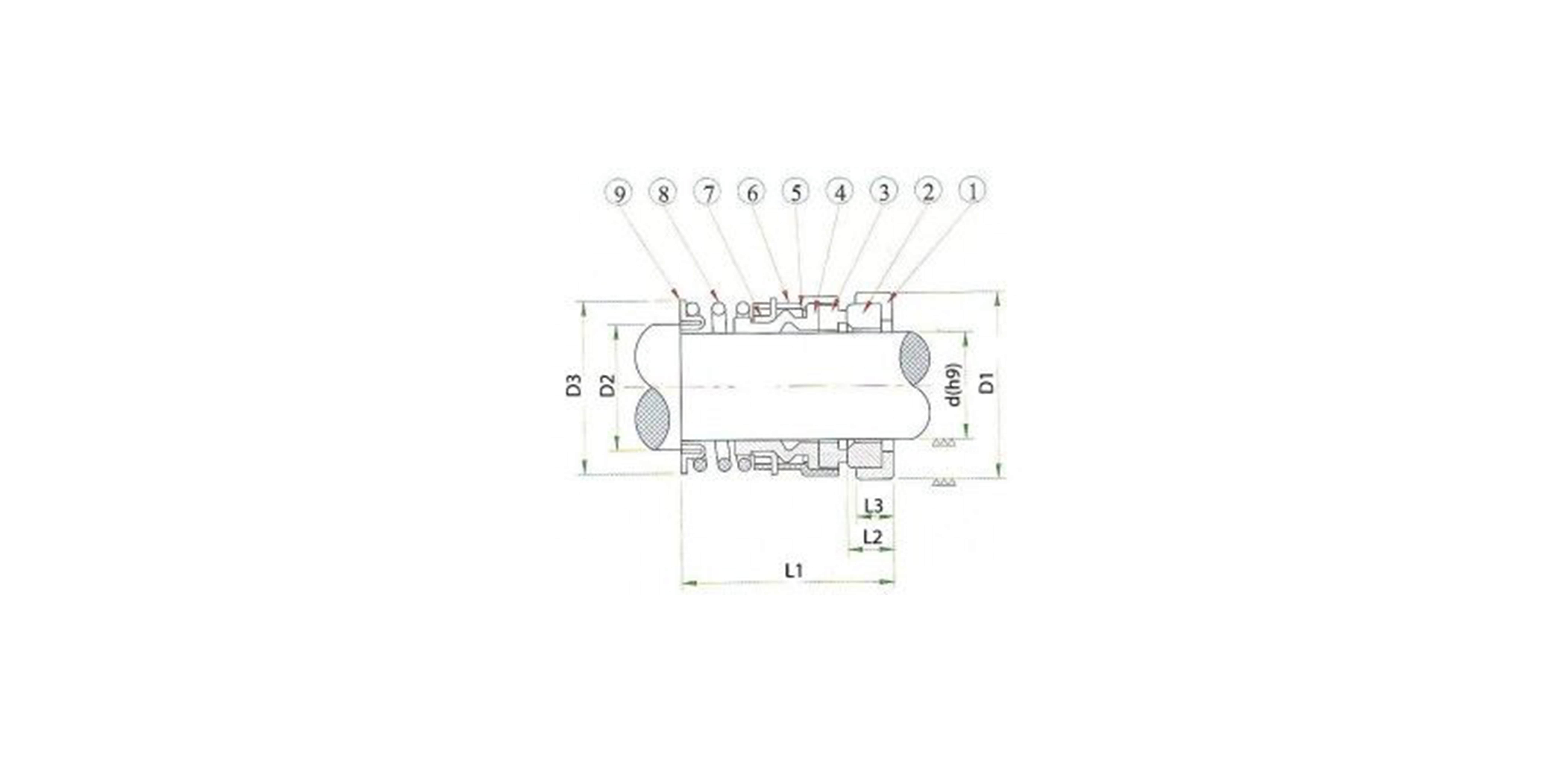

Details:
d (h9)
:
3.5" (88.9mm)
D1
:
4.375" (111.12mm)
L1
:
4.375" (111.12mm)
D2
:
3.562" (90.47mm)
D3
:
4.375" (111.12mm)
L2
:
0.781" (19.84mm)
L3
:
0.656" (16.66mm)
Material
:
C
Operating Limits
| Pressure | 5 bar |
| Speed | 10 m/s |
| Temperature | NBR: -20ºC to +100ºC (-4ºF to +213ºF) |
| Viton: -20ºC to +200ºC (-4ºF to +392ºF) |
