1. GS9S-15x15.965x0.319-COMPO
  2. GS9S
  3. Buffer Seals / Cushion Seals
  4. Standard Seals

GS9S-15x15.965x0.319-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 251.23
$ 200.98 200.98000000000002 AUD

$ 251.23

Quantity
Your Price
1 - 4
$ 200.98
5 - 9
$ 190.93
10 - 24
$ 180.89
25 - 49
$ 163.30
50 +
$ 125.62

This combination does not exist.

Add to Cart

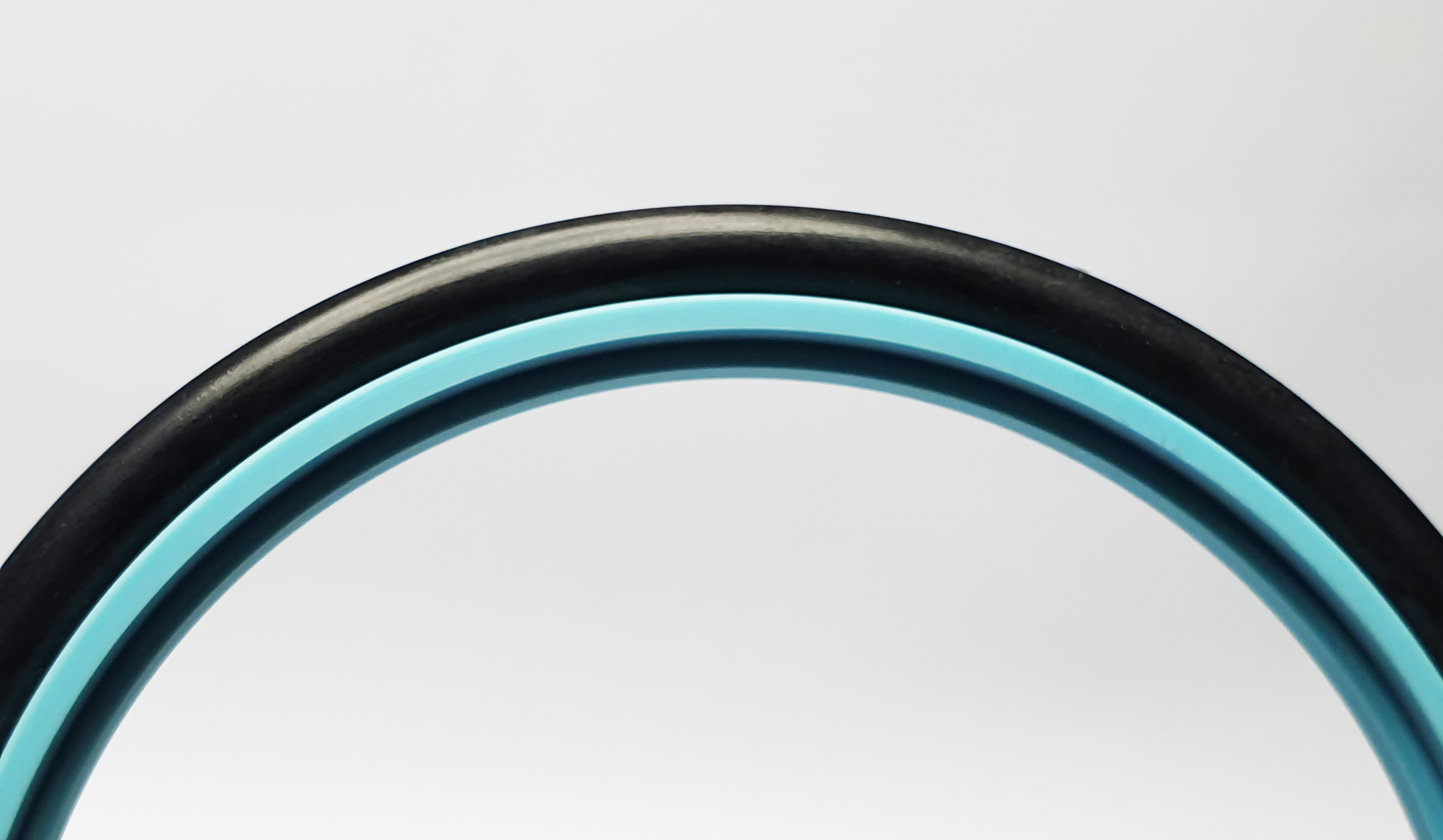

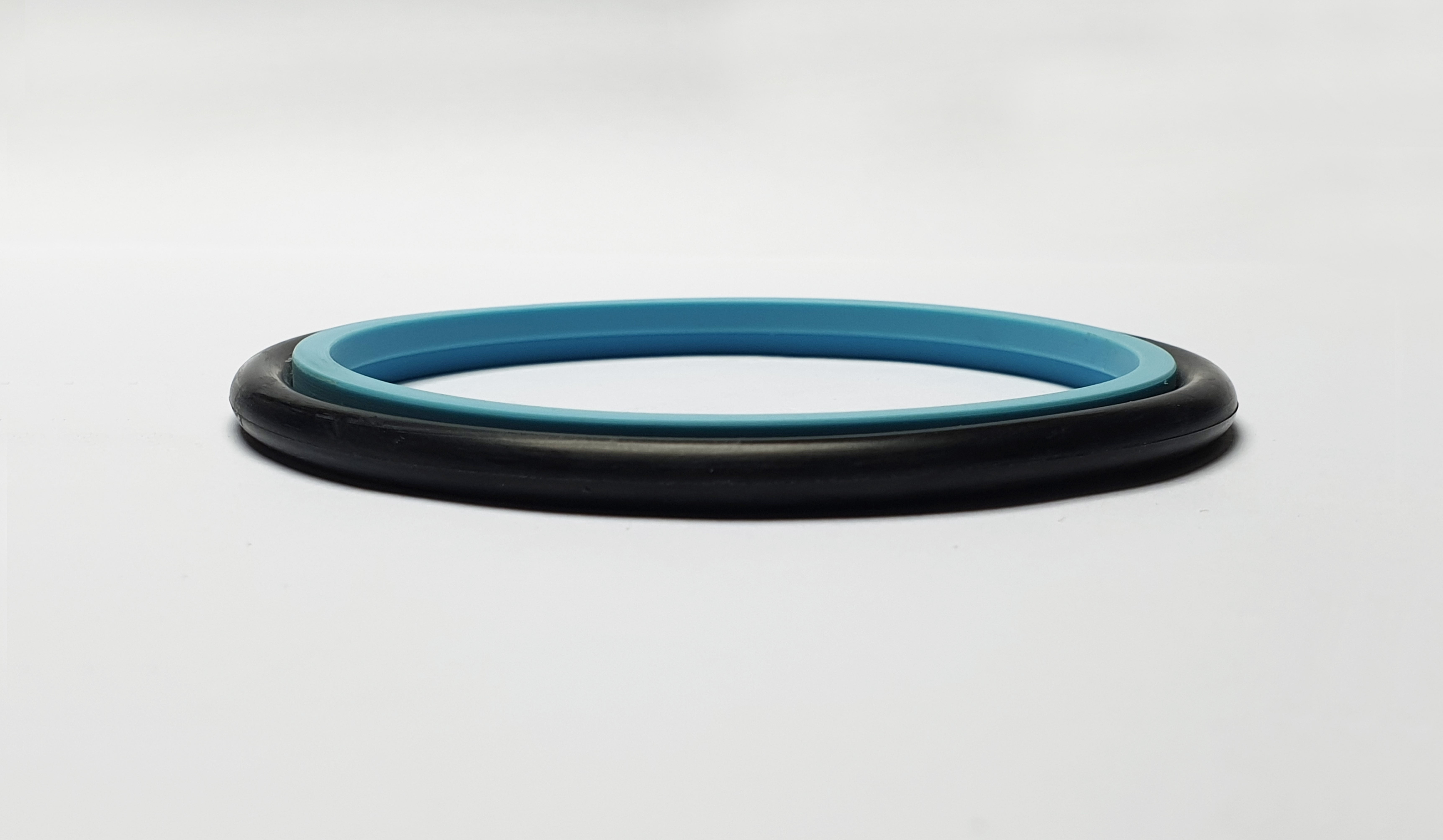

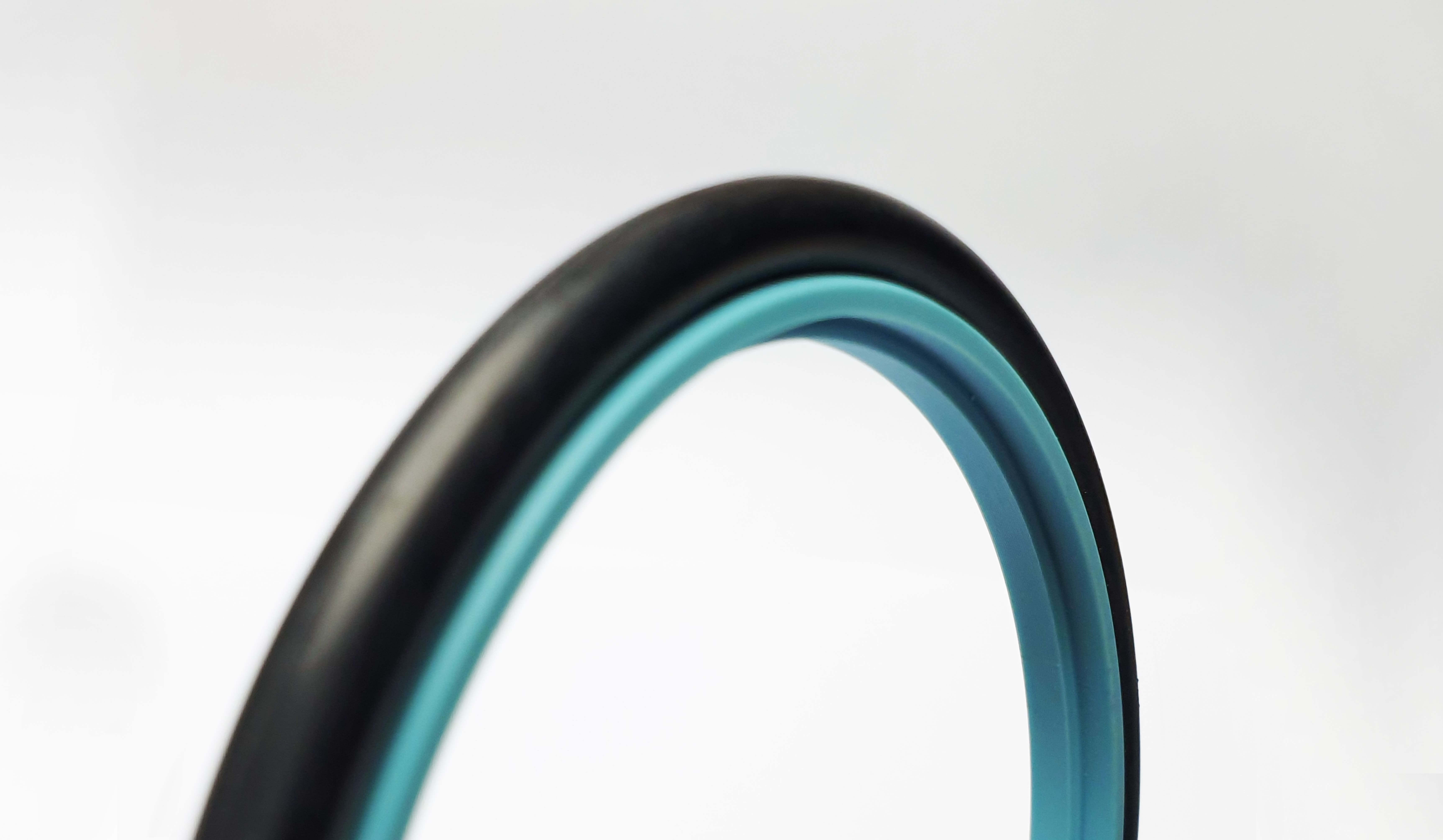

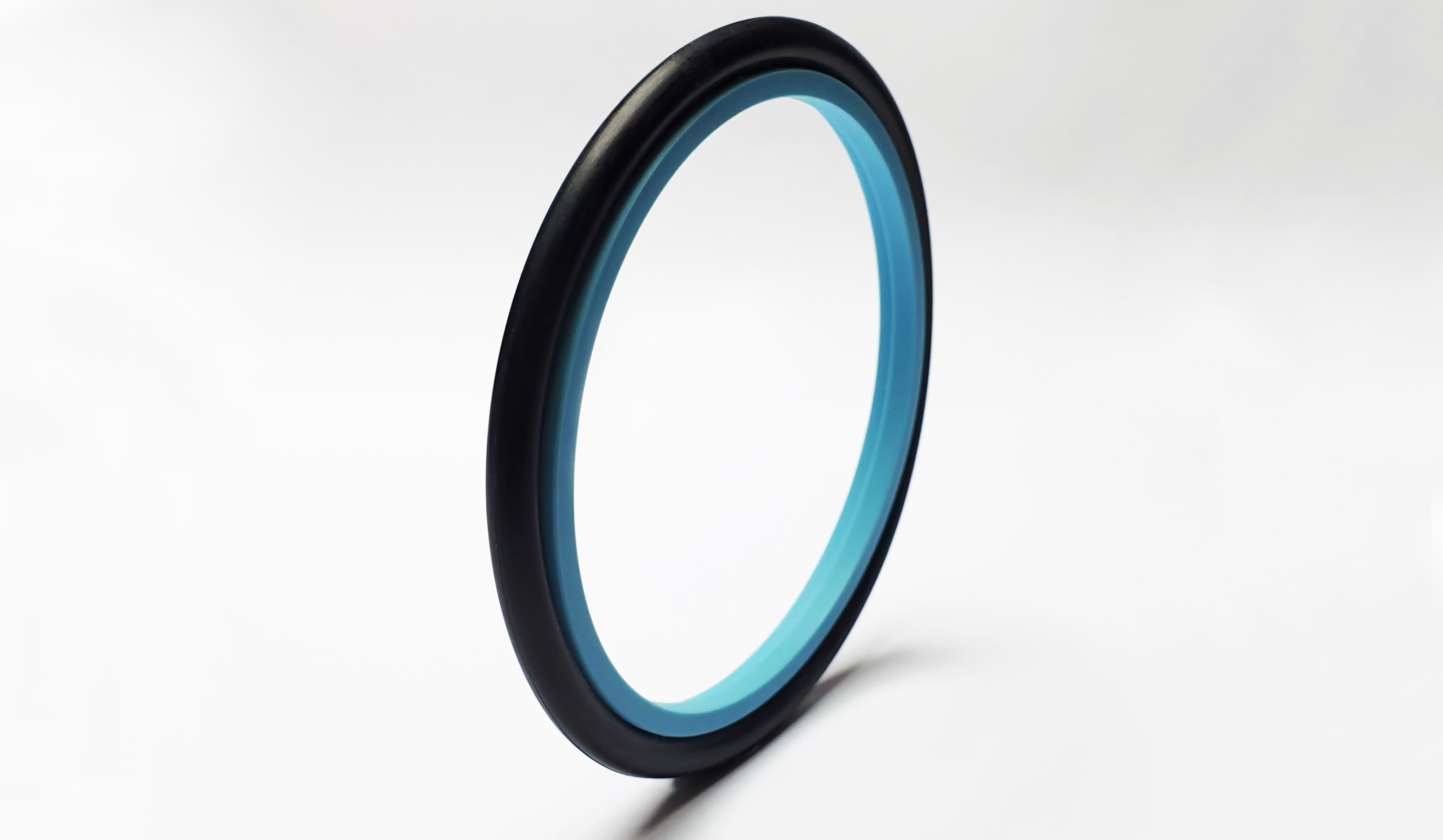

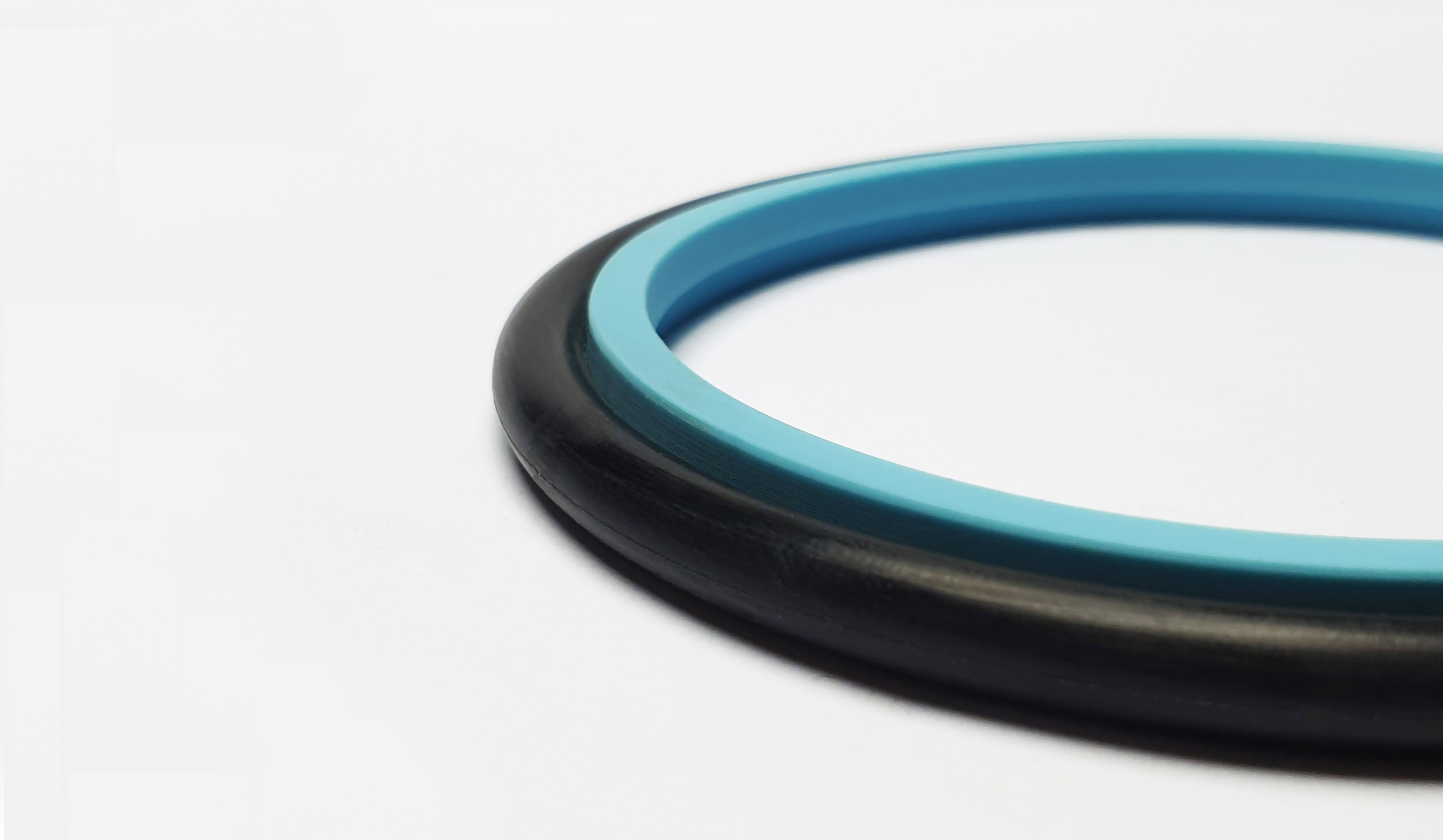

GS9S 15" X 15.965" X 0.319" COMPO

Details:

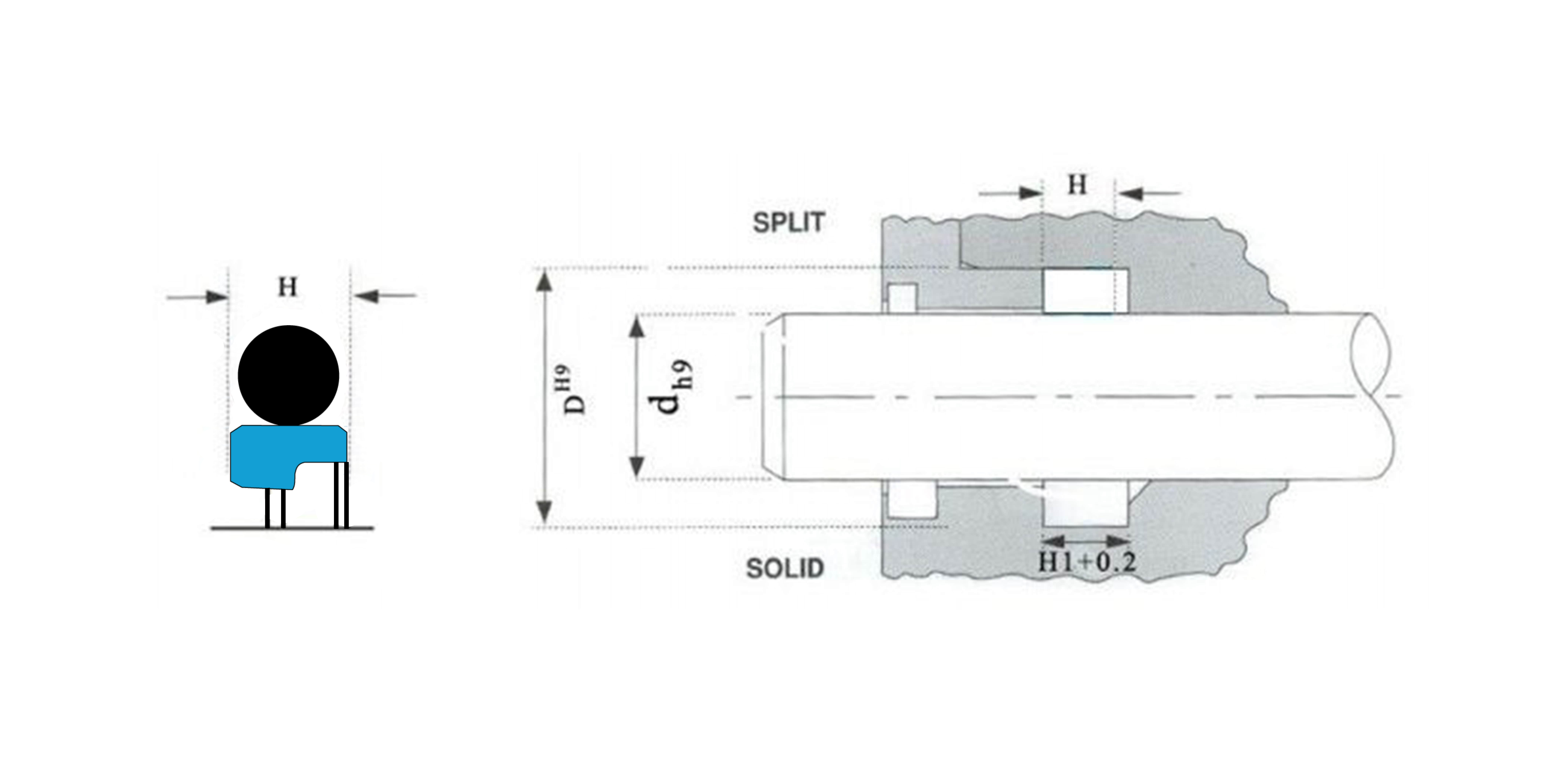

d (h9)
:
15" (381.0mm)
H1+0.2
:
0.319" (8.1mm)
D (H9)
:
15.965" (405.51mm)
H
:
0.31" (7.87mm)
Material
:
COMPO
GS9S-15x15.965x0.319-COMPO

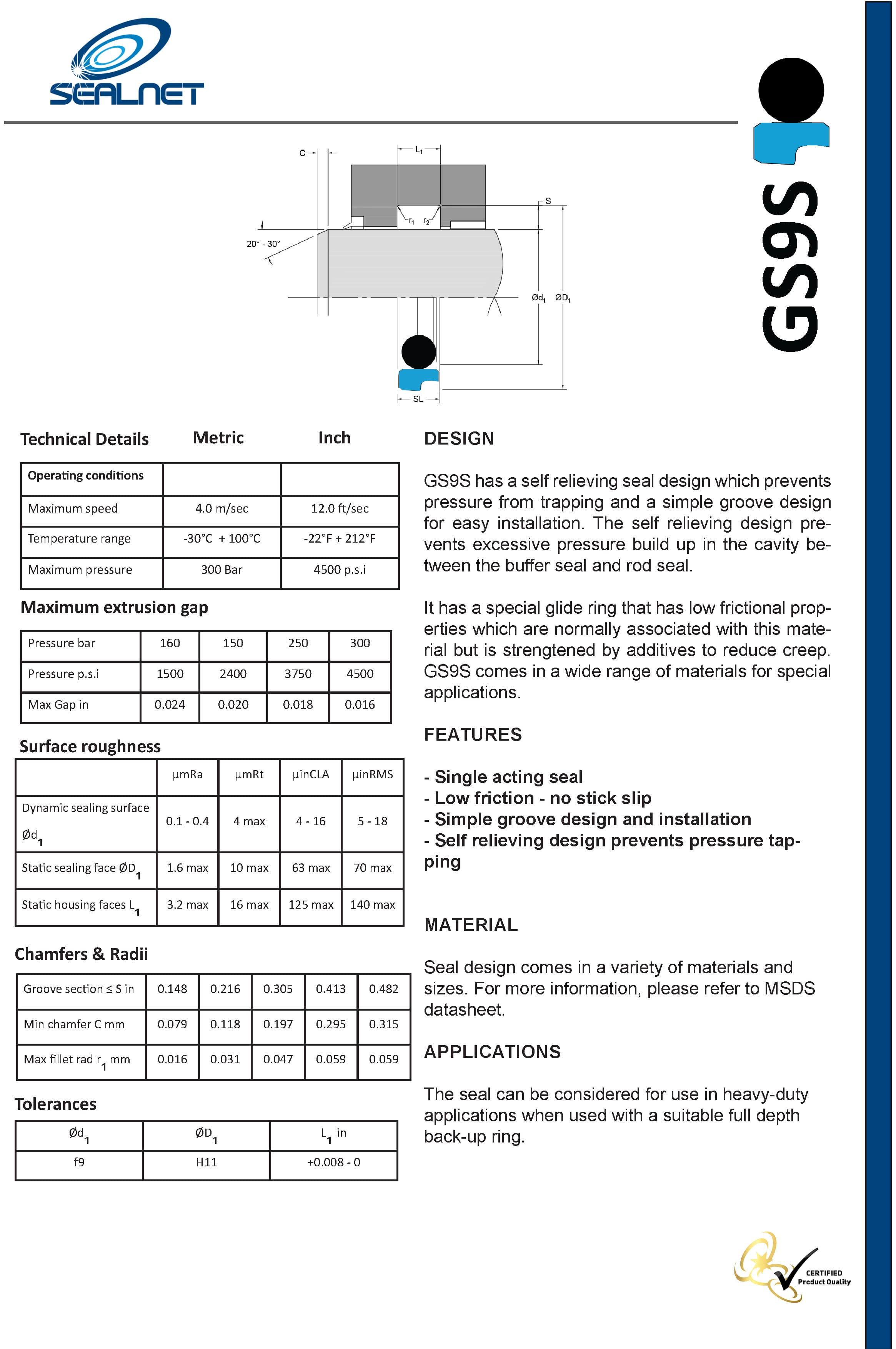

Design

  • GS9S has a self relieving seal design which prevents pressure from tapping and a simple groove design for easy installation. The self relieving design prevents excessive pressure build up in the cavity between the buffer seal and rod seal. It has a special glide ring that has low frictional properties which are normally associated with this material. It is strengthened by additives to reduce creep. GS9S comes in a wide range of materials for special applications.

Features

  • Single acting seal
  • Low friction - no stick slip
  • Simple groove design and installation
  • Self relieving design prevents pressure tapping

Applications

  • The seal can be considered for use in heavy-duty applications when used with a suitable full depth back up ring.
