VPI-2.25x2.875x0.1874/0.937-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • C/S
  • Stack Height (H/V)
  • Unit

$ 107.43
$ 85.94 85.94 AUD

$ 107.43

Quantity
Your Price
1 - 4
$ 85.94
5 - 9
$ 81.65
10 - 24
$ 77.35
25 - 49
$ 69.83
50 +
$ 53.72

This combination does not exist.

Add to Cart

VPI 2.25" X 2.875" X 0.1874 / 0.937" COMPO

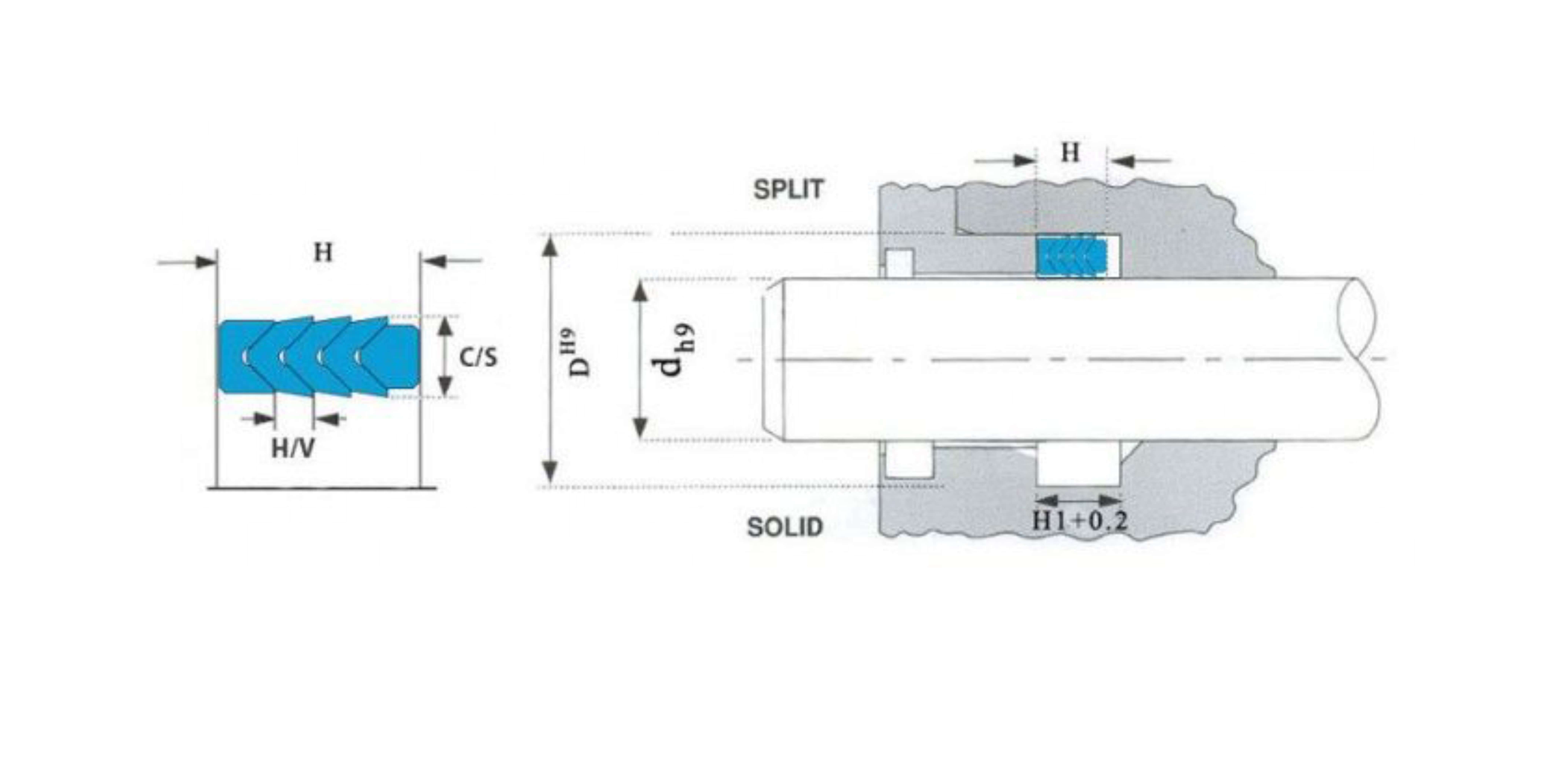

Details:

d (h9)
:
2.25" (57.15mm)
H1+0.2
:
0.937" (23.8mm)
C/S
:
0.3125" (7.94mm)

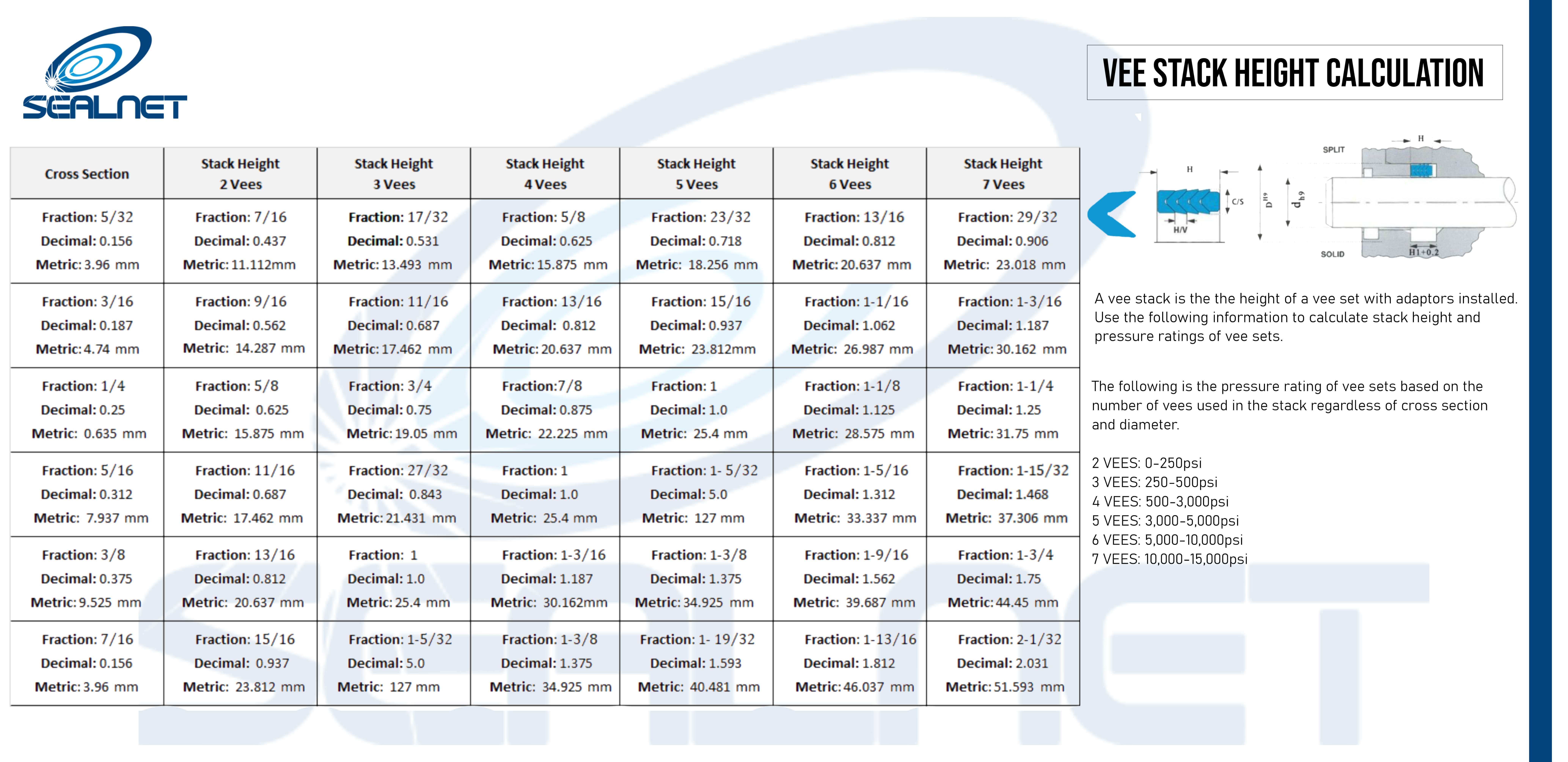

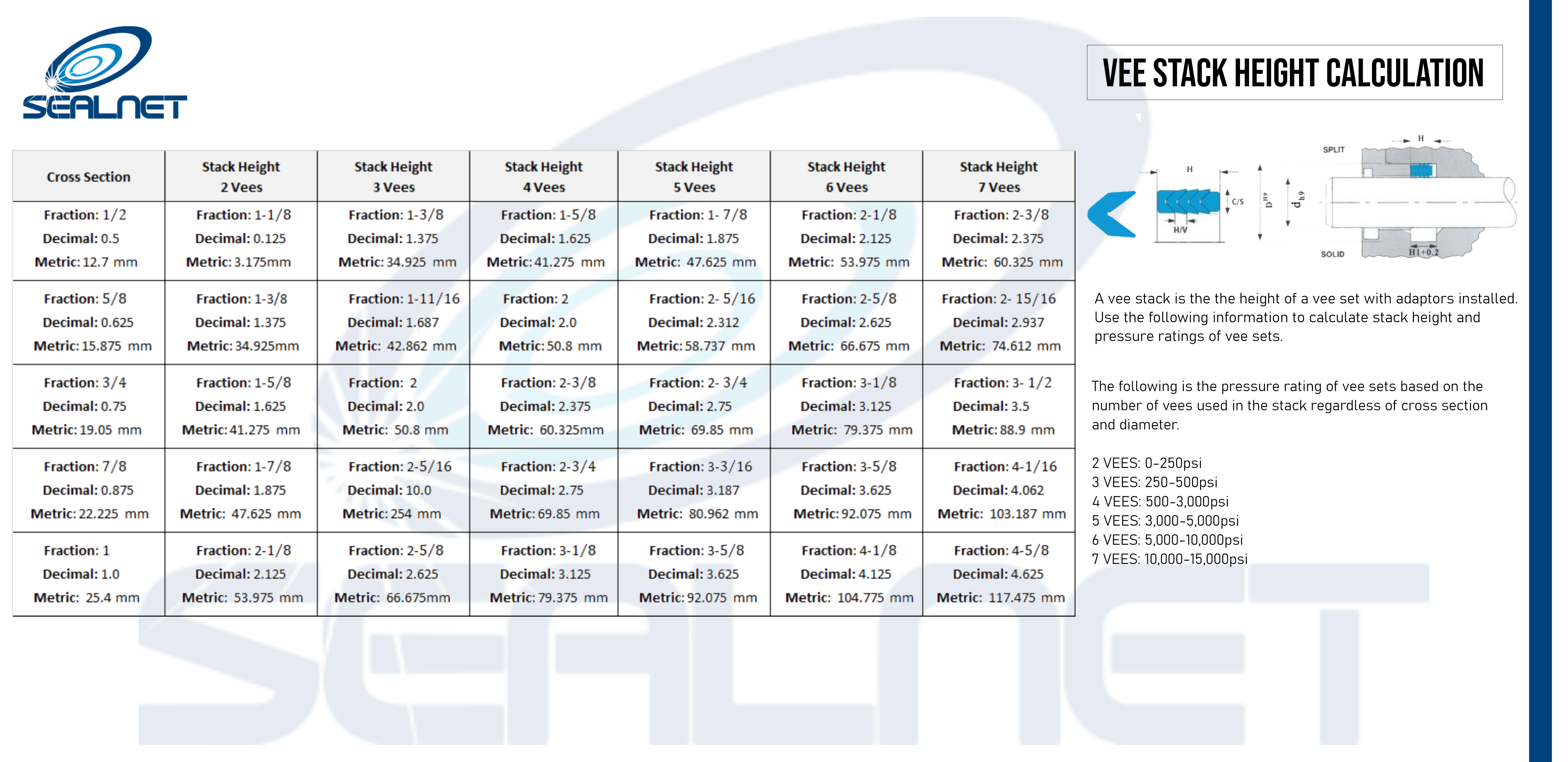

Stack Height (H/V)
:
0.1874" (4.76mm)
D (H9)
:
2.875" (73.02mm)
Material
:
COMPO
VPI-2.25x2.875x0.1874/0.937-COMPO

Design

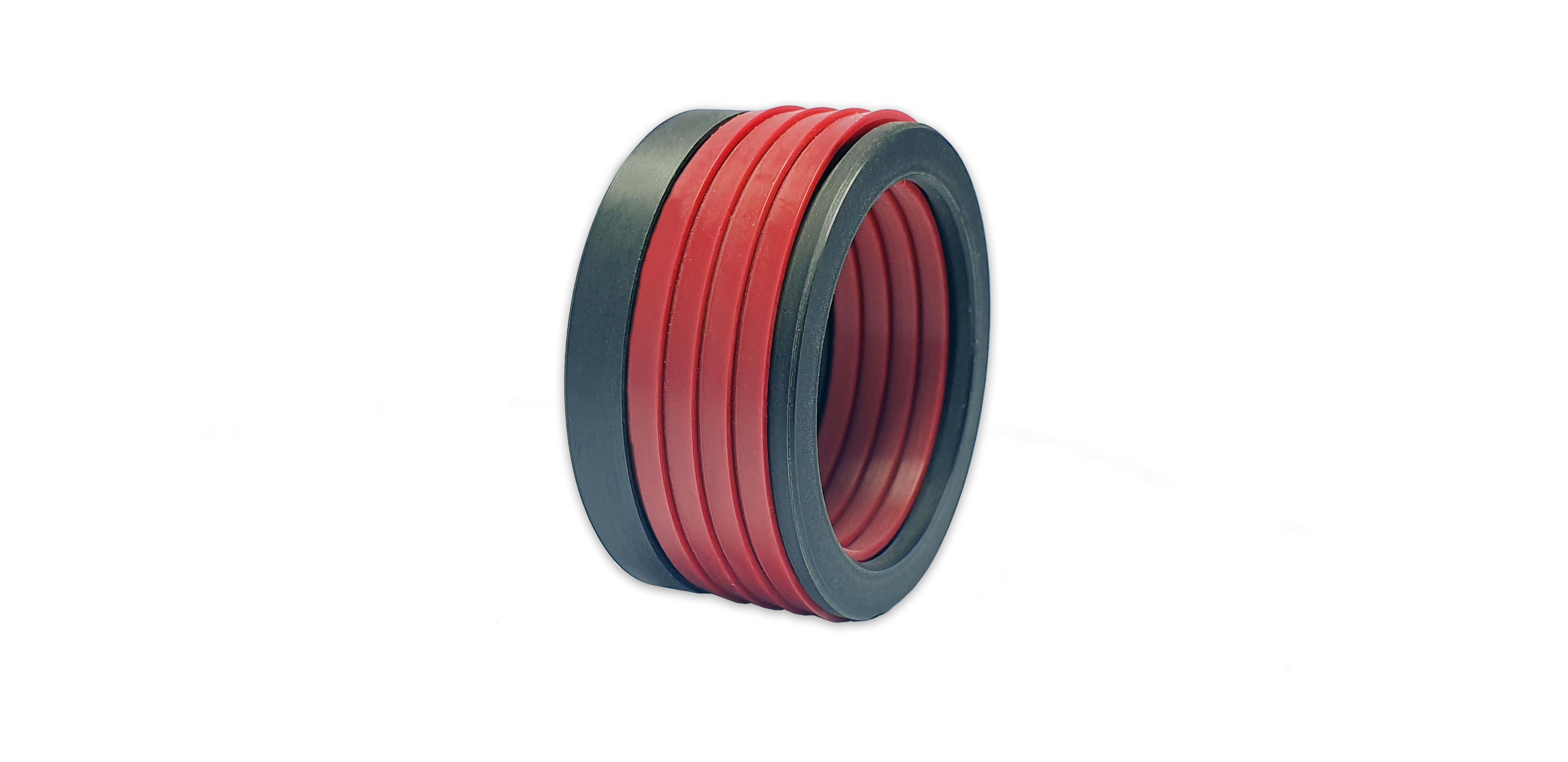

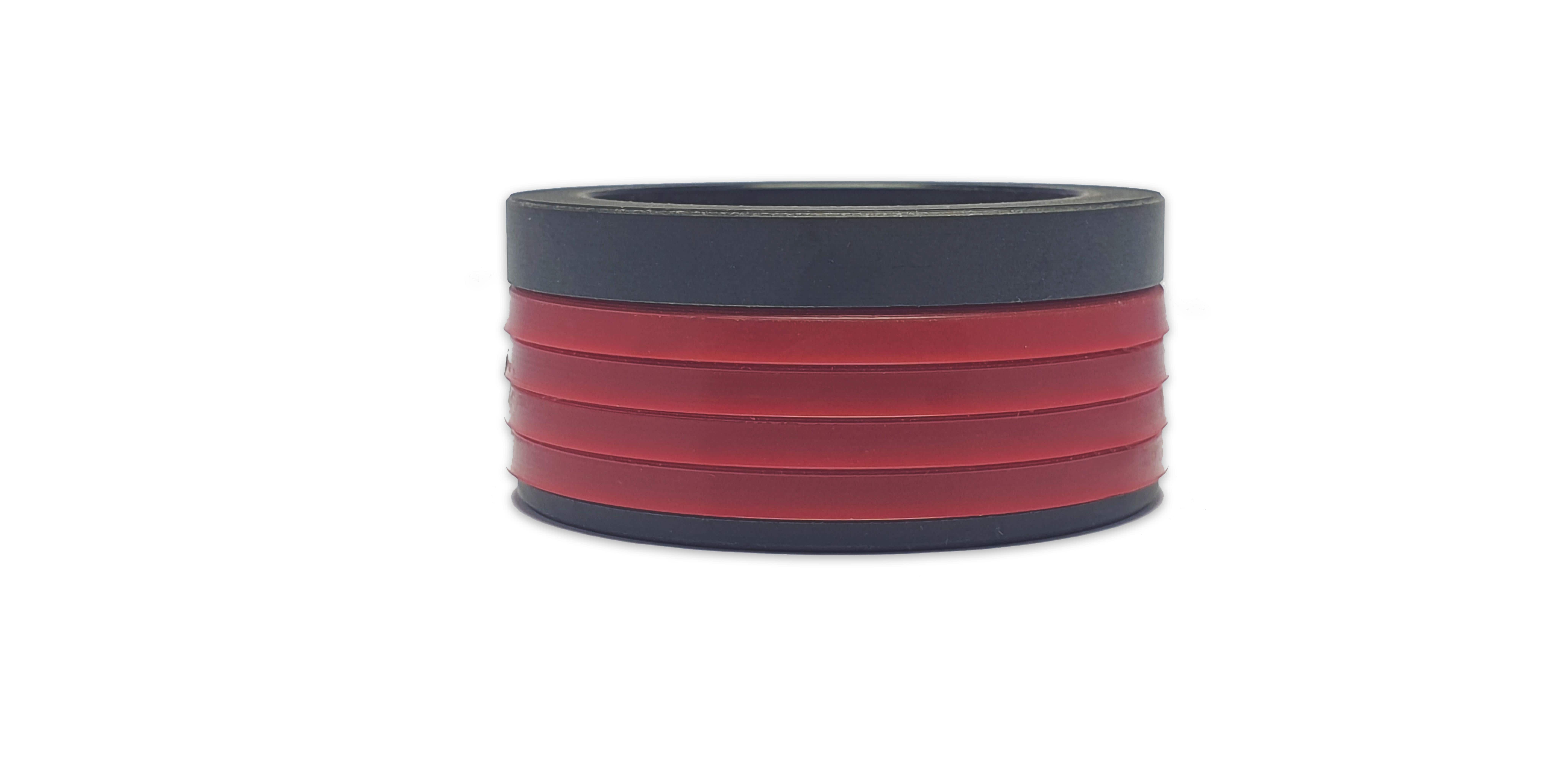

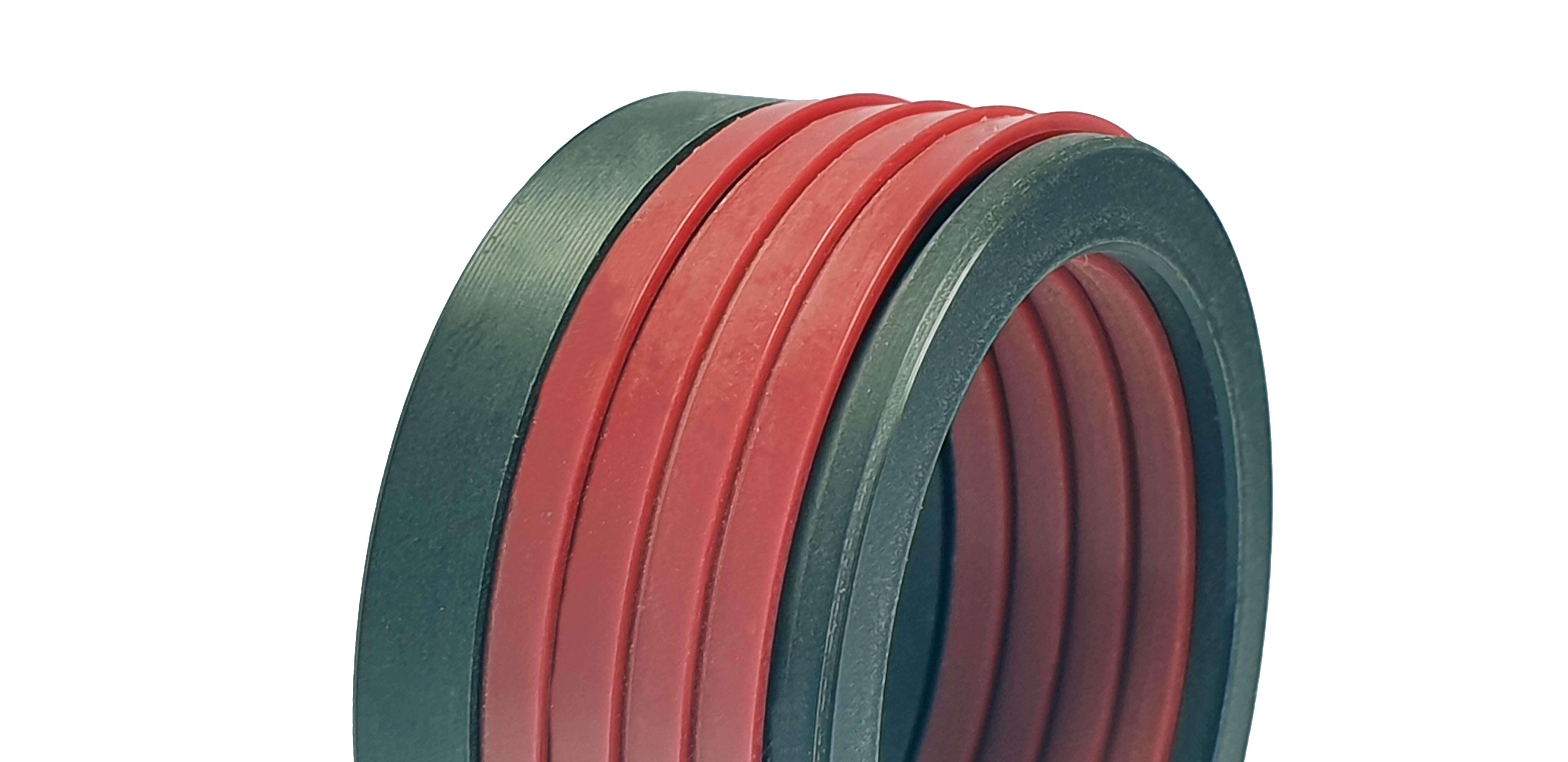

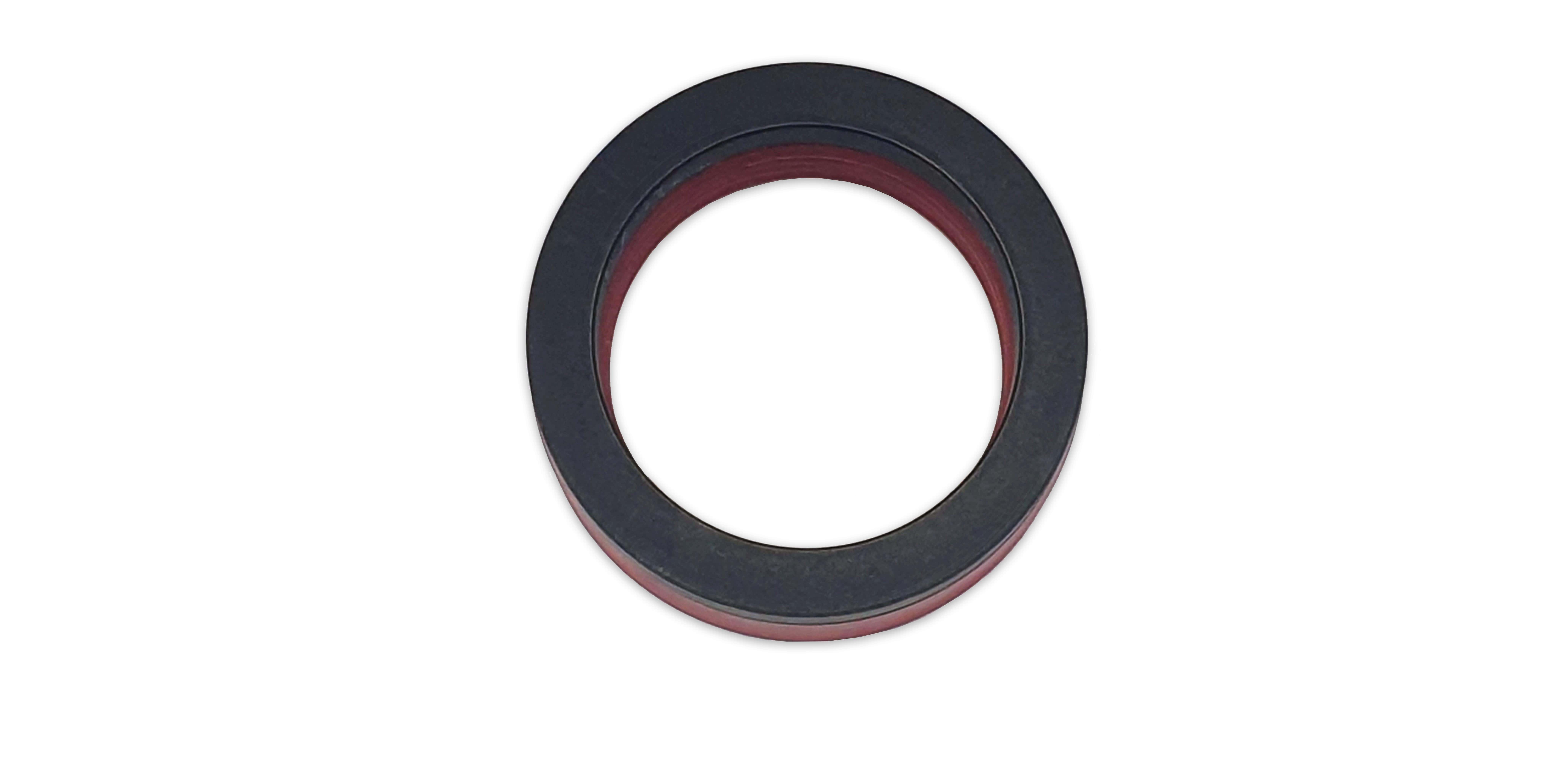

  • VPI vee packer seal is normally used in multiples in a set with male and female adaptors. The parts are 'stacked' together and are lubricated liberally with clean operating fluid prior to assembly. VPI must be axially pre-loaded by the housing. This pre-load works through the male adaptor on the pressure side, exerting a hinging action, forcing the sealing lips apart to ensure a low pressure seal. As pressure and hinging action increases, it increases the effectiveness of the seal even where severe vibration may occur.


Applications

  • High pressure rod and piston sealing applications
  • Used in steel mill and hydraulic press applications


Fluids

  • Mineral based oils, water/glycol and water emulsions
