PAK8-107.5x120x5.6-NBR

  • d (h9)
  • D (H9)
  • Material
  • L
  • D1
  • O-Ring
  • Unit
  • R

$ 26.94
$ 21.55 21.55 AUD

$ 26.94

Quantity
Your Price
1 - 4
$ 21.55
5 - 9
$ 20.47
10 - 24
$ 19.40
25 - 49
$ 17.51
50 +
$ 13.47

This combination does not exist.

Add to Cart

PAK8 107.5 X 120 X 5.6 NBR

Details:

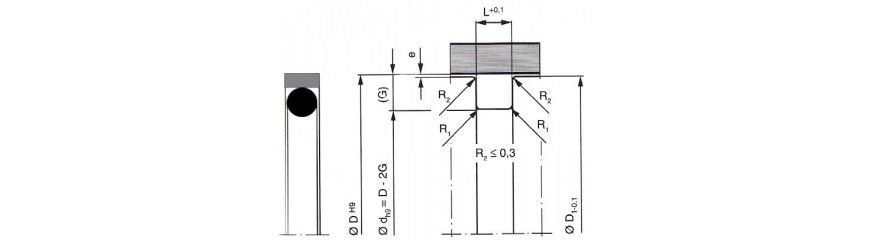

d (h9)
:
107.5mm
L
:
5.6mm
D1
:
119.85mm
O-Ring
:
107.32x5.34 (BS347)
R
:
0.9mm
D (H9)
:
120mm
Material
:
NBR
PAK8-107.5x120x5.6-NBR

Design

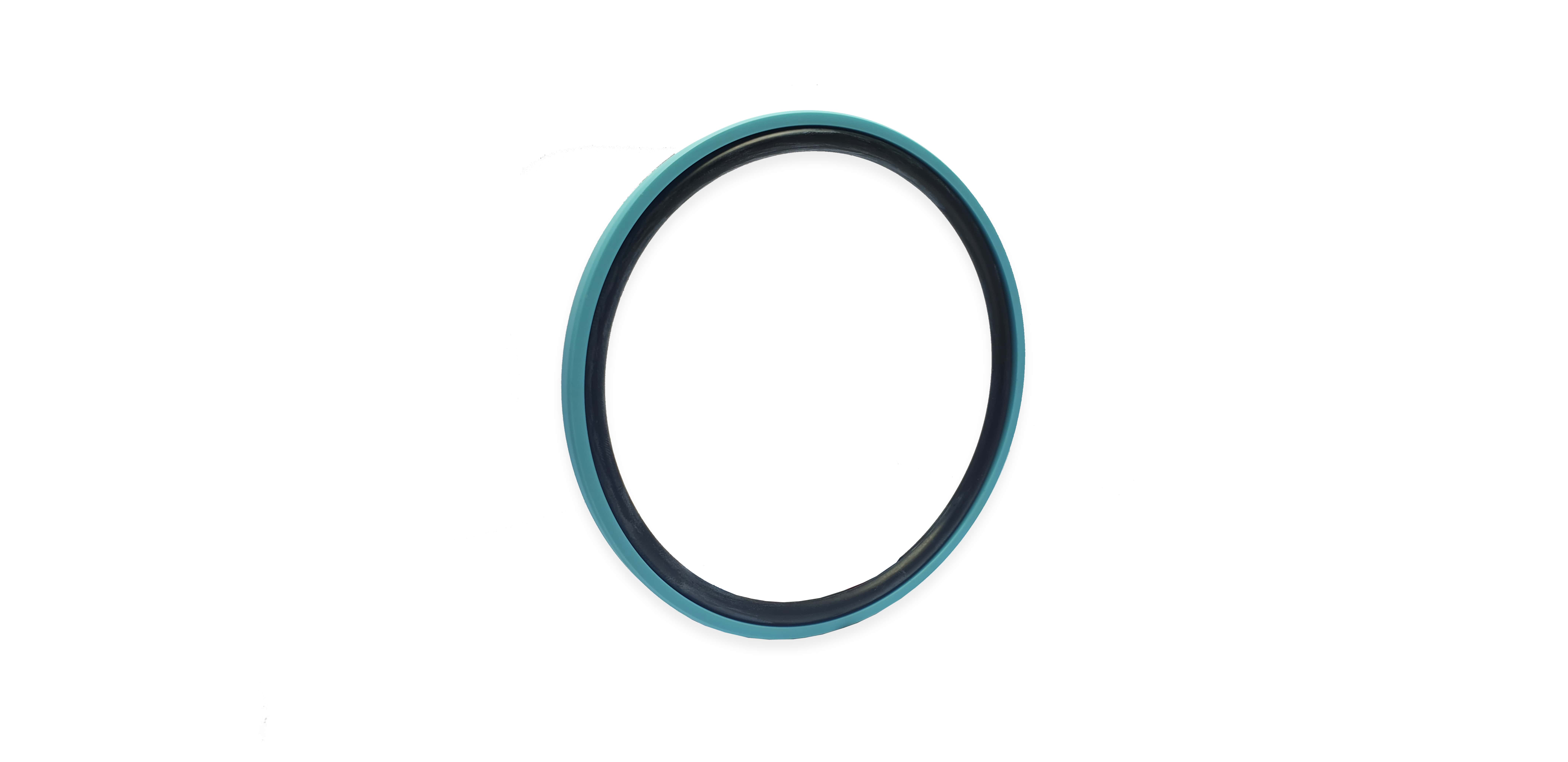

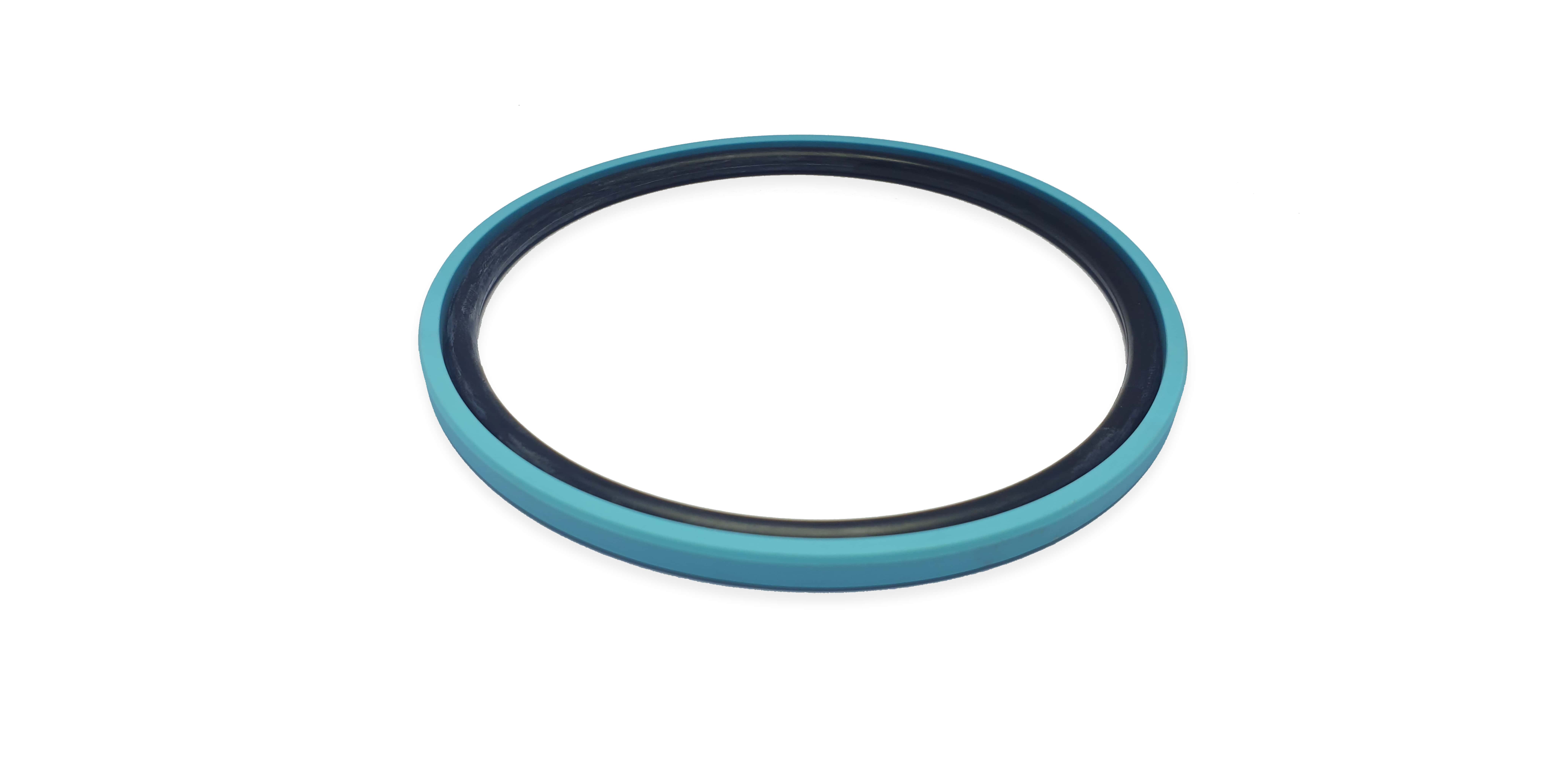

  • PAK8 is a piston sealing set profile that consists of a PTFE piston sealing ring and an O-ring. PAK8 is combined as a sealing unit and is appropriate for double acting pistons in pneumatic cylinders. PAK8 has minimal break out and dynamic slide friction. A steady movement is guaranteed even at low velocities.

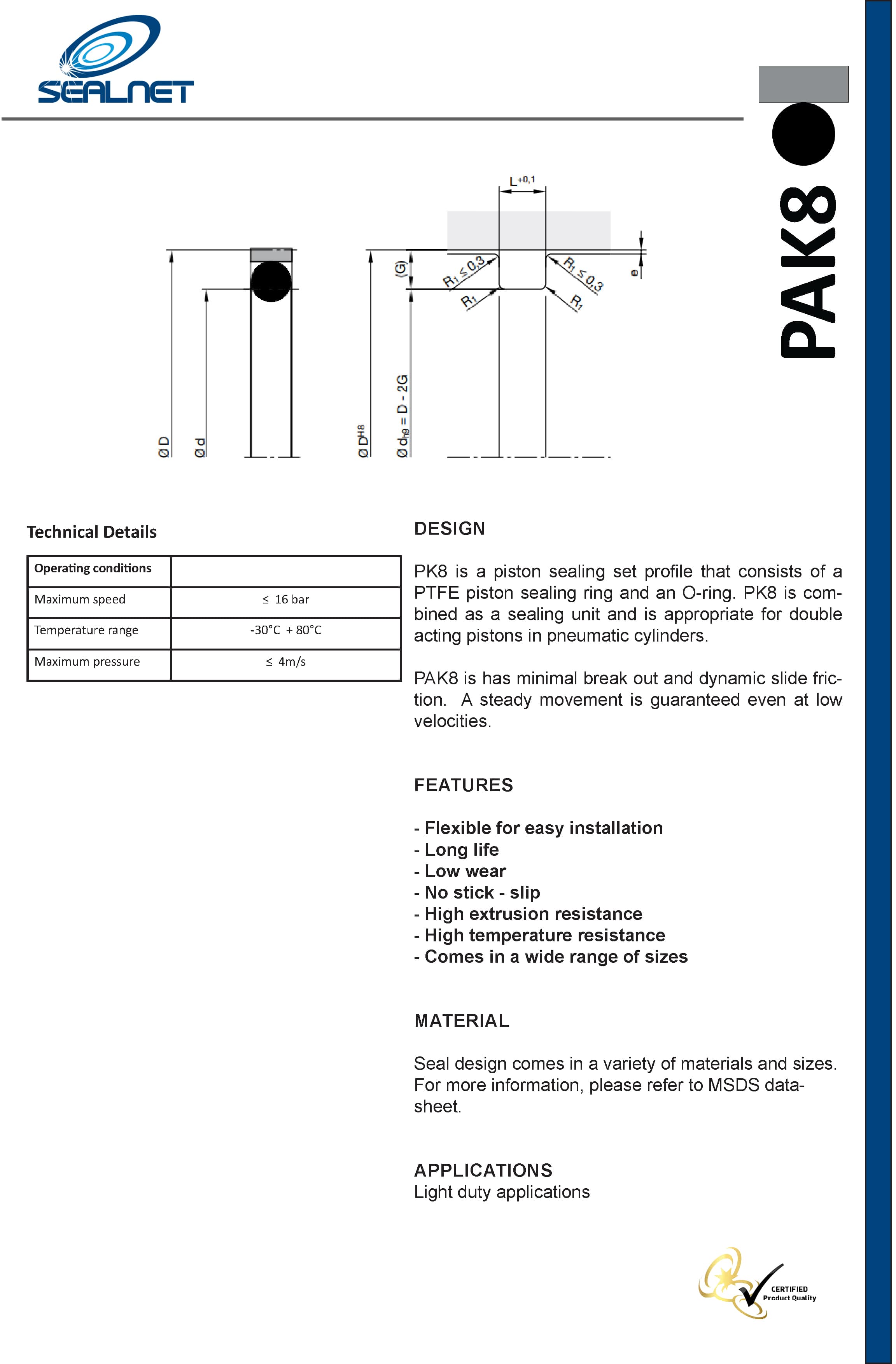

Download Datasheet


Applications

  • Flexible for easy installation
  • Long life
  • Low wear
  • No stick-slip
  • High extrusion resistance
  • High temperature resistance
  • Comes in a wide range of sizes


Application

  • Light to medium duty applications
