1. PAK8-77.5x90x5.6-NBR
  2. PAK8
  3. Pneumatic Seals
  4. Standard Seals

PAK8-77.5x90x5.6-NBR

  • d (h9)
  • D (H9)
  • Material
  • L
  • D1
  • O-Ring
  • Unit
  • R

$ 24.88
$ 19.90 19.900000000000002 AUD

$ 24.88

Quantity
Your Price
1 - 4
$ 19.90
5 - 9
$ 18.91
10 - 24
$ 17.91
25 - 49
$ 16.17
50 +
$ 12.44

This combination does not exist.

Add to Cart

PAK8 77.5 X 90 X 5.6 NBR

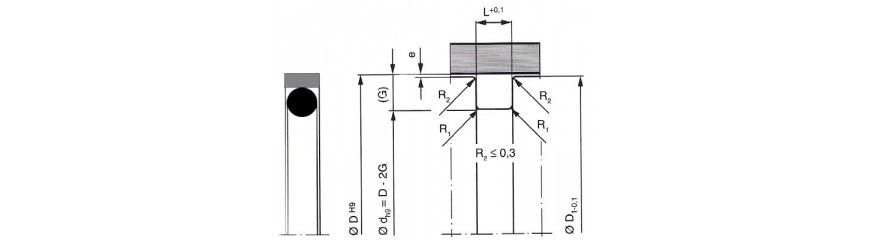

Details:

d (h9)
:
77.5mm
L
:
5.6mm
D1
:
89.85mm
O-Ring
:
75.57x5.33 (BS337)
R
:
0.9mm
D (H9)
:
90mm
Material
:
NBR
PAK8-77.5x90x5.6-NBR

Design

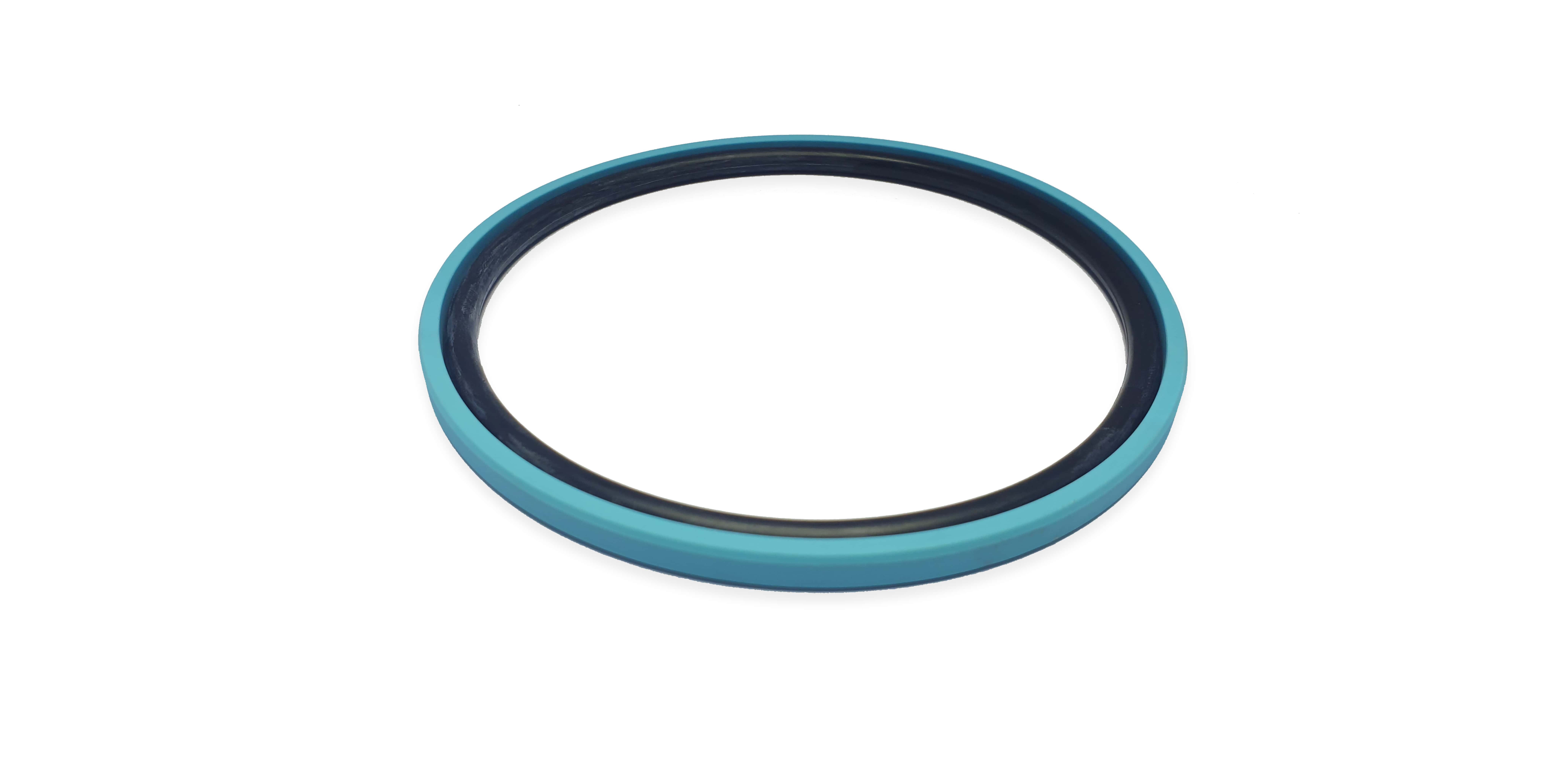

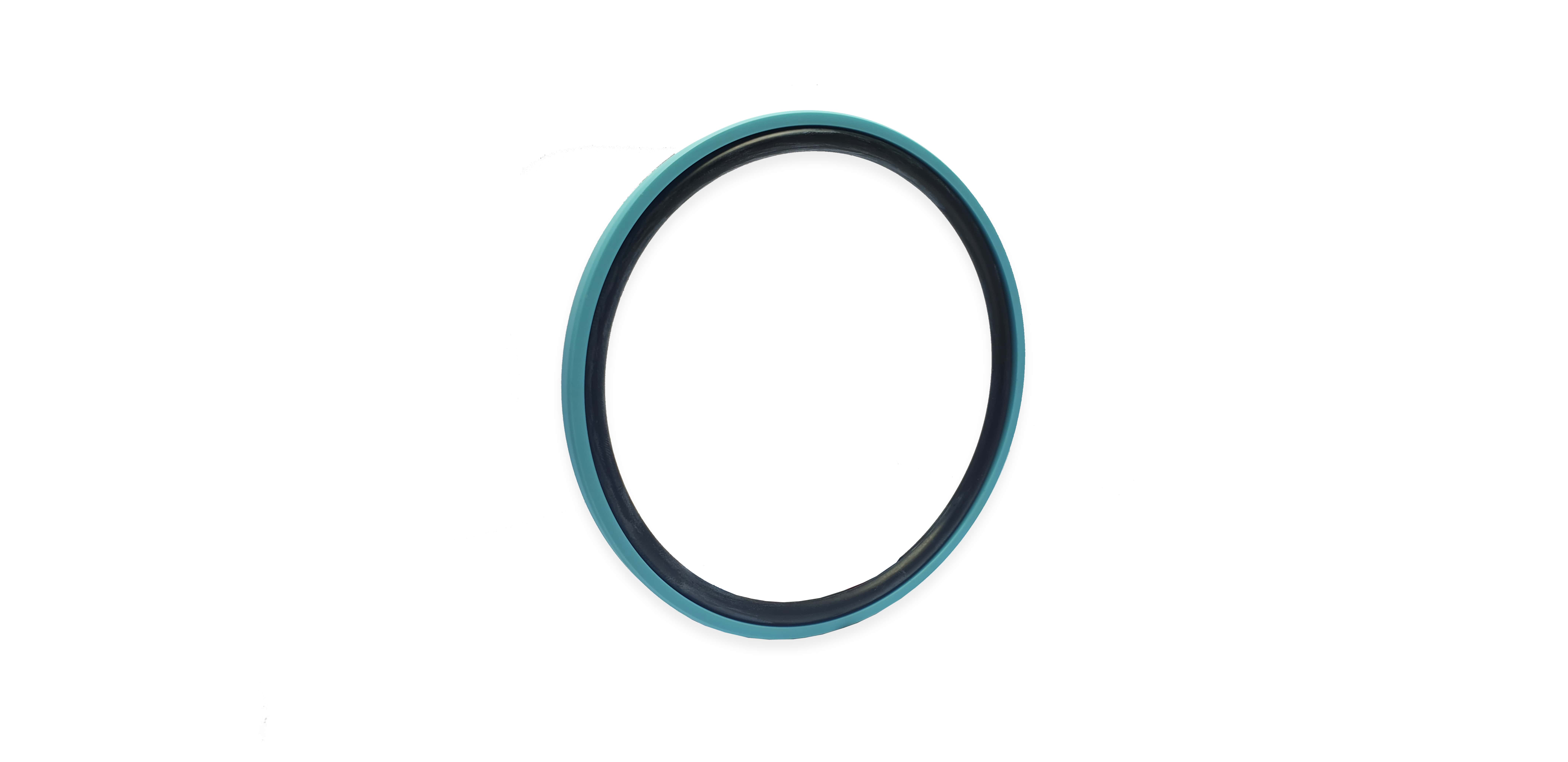

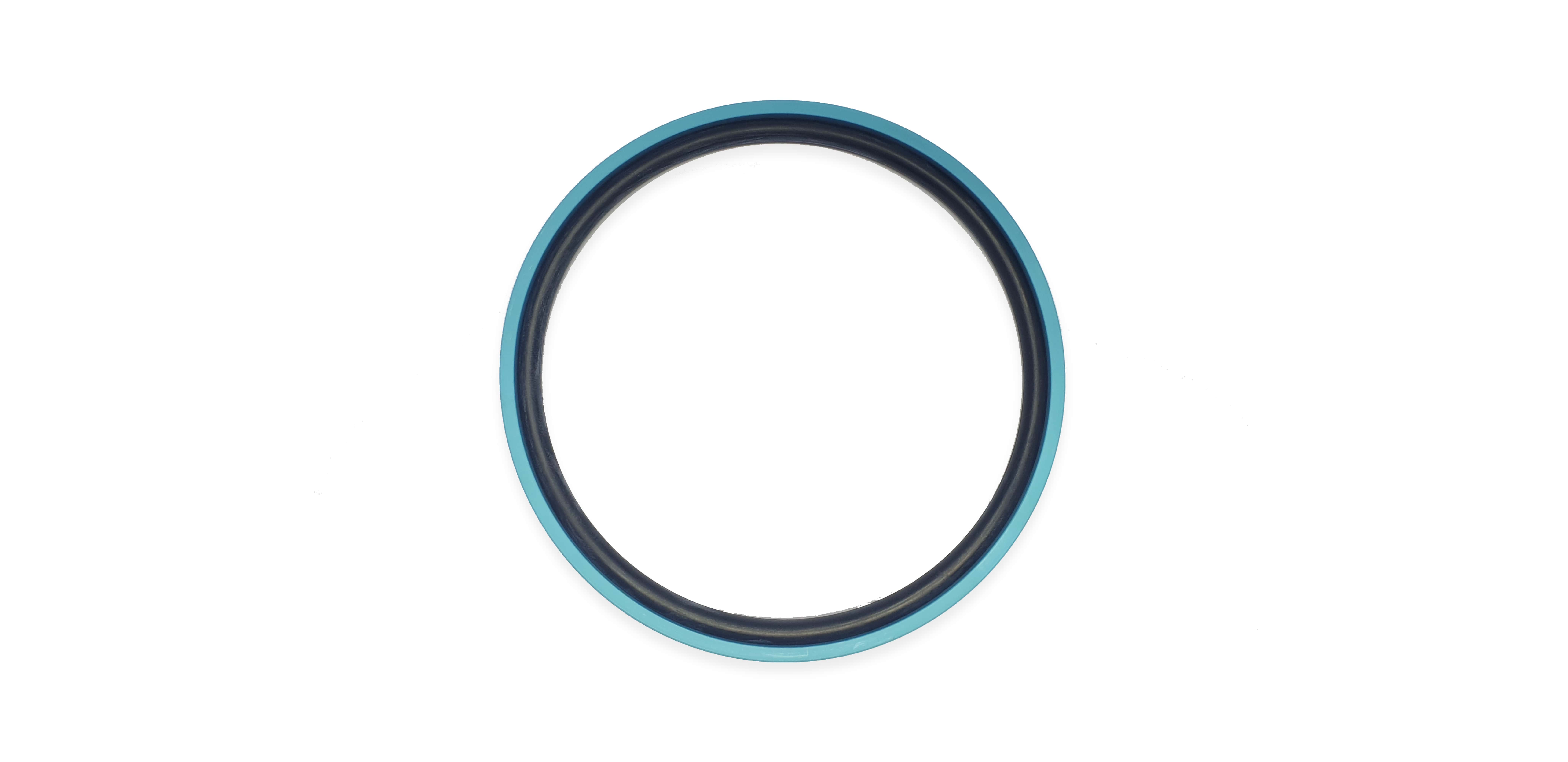

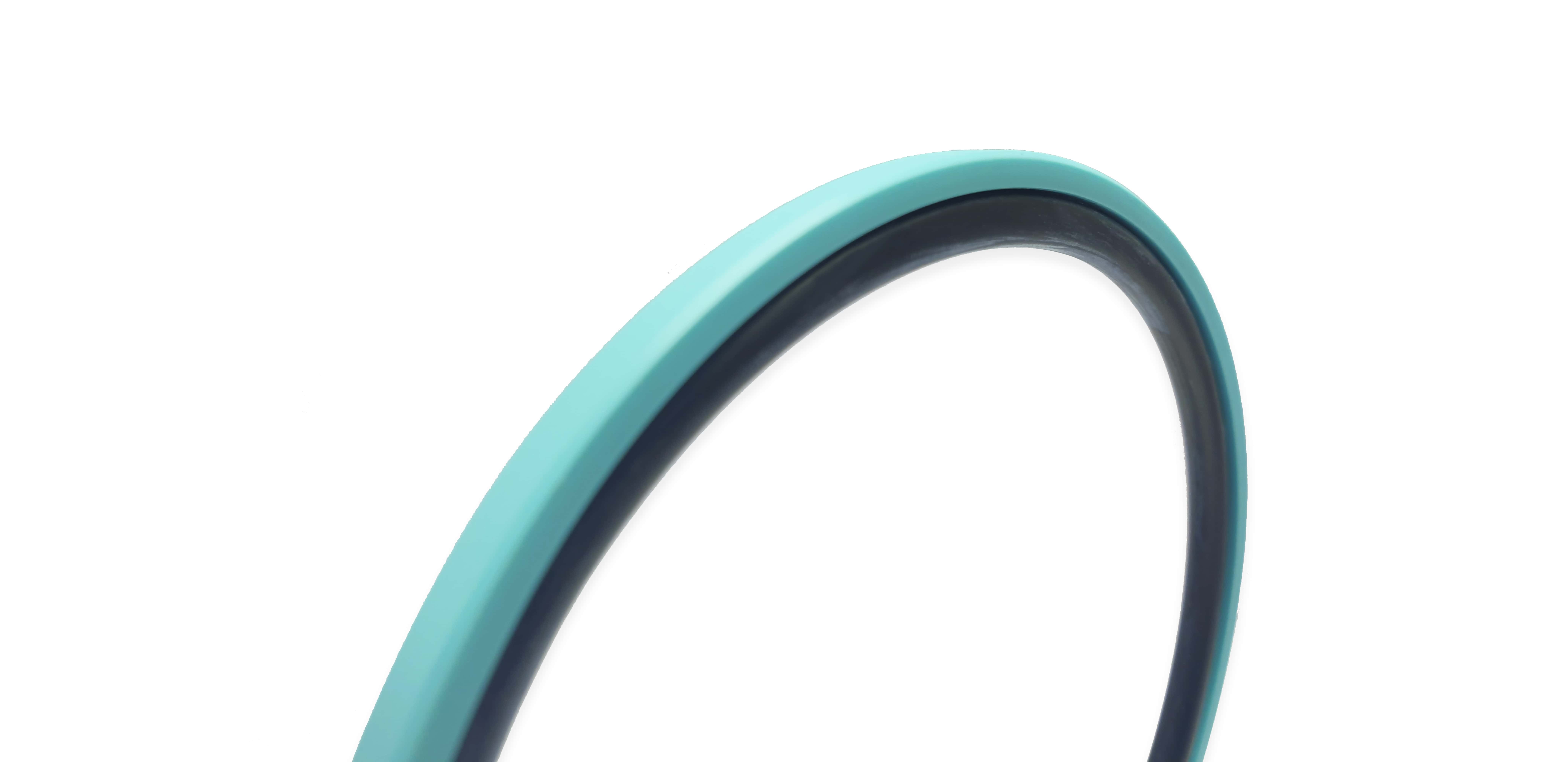

  • PAK8 is a piston sealing set profile that consists of a PTFE piston sealing ring and an O-ring. PAK8 is combined as a sealing unit and is appropriate for double acting pistons in pneumatic cylinders. PAK8 has minimal break out and dynamic slide friction. A steady movement is guaranteed even at low velocities.
Download Datasheet


Applications

  • Flexible for easy installation
  • Long life
  • Low wear
  • No stick-slip
  • High extrusion resistance
  • High temperature resistance
  • Comes in a wide range of sizes


Application

  • Light to medium duty applications
